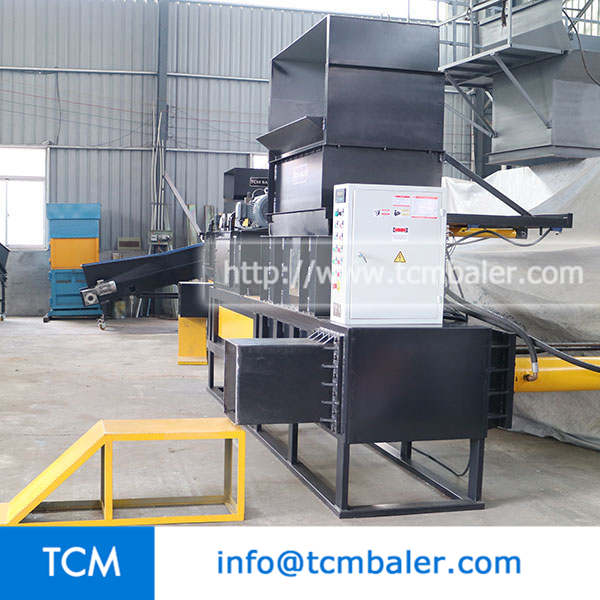

Loose Material Horizontal Bagging Baler

TCM-HB series of baler is suitable for loose materials such as sawdust,cotton seed shell, peanut shells husk,wood shavings,cloth,coir fiber,rice husk,silage,wood chips,etc.

  • Series:HB
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

TCM-HB series loose material horizontal bagging pressing machine are high efficiency, economical and continuous. It is suitable to compress powder with low moisture content into blocks, Output speed can reach 40-60 bales per hour, high efficiency. It is closed type hydraulic baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.

Simple and proper structure and customizable. It is high strength output door, hydraulic automatic door opening and closing, convenient operation and safety, Safety interlock, three-phase voltage, simple operation and Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.

HB series baler machine have PLC button control, so they are convenient for operation. With PLC program and electric button control, one time to complete compression and disposable bag by one button, Increased material controller can make the machine automatically start compress automatically. Feed material by manually or automatically, high degree of automation, saving manpower.

Adopt foreign famous seal, valve, electric components. Adopt the German hydraulic technology to save energy and protect environment, and the YUKEN valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.

Parameter

Model Hydraulic power(ton) Bale size(mm) Bale weight(kg) Main Motor(kw) Capacity(kg/hour) Appearance size(mm)
TCM80 40/40 580×300×380 10-20 7.5 1000-1200 3300×2660×2100
TCM90 40/50 750×430×310 15-25 11 1500-1800 3400×2660×2100
TCM110 50/60 750×430×310 20-30 15 2000-2500 3500×2700×2100
TCM140 60/80 750×430×310 25-35 18.5 2500-3000 3600×2700×2100
TCM180 80/100 750×430×310 30-45 22 3000-3500 3800×3250×2100
TCM270 120/150 750×430×310 40-50 37 4000-5000 3800×3250×2100
