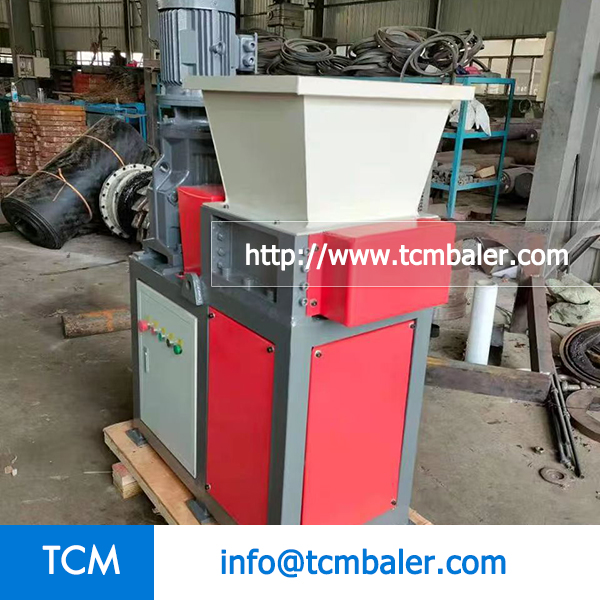

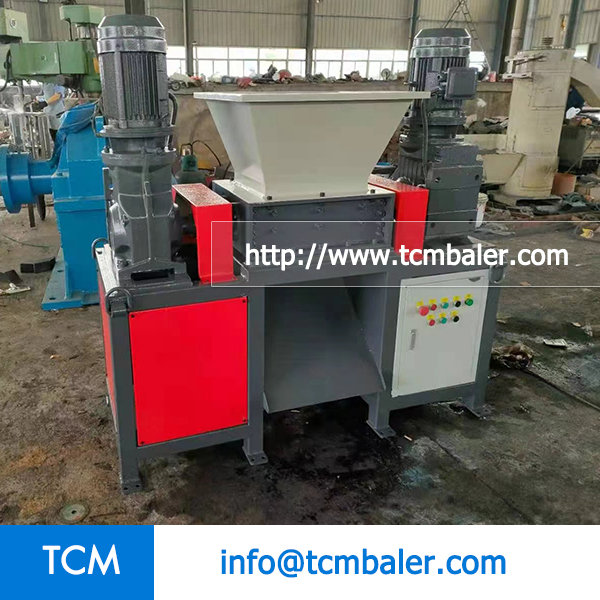

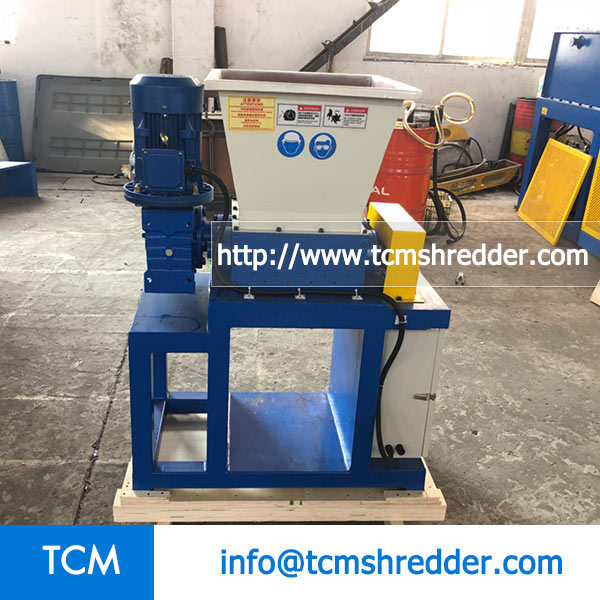

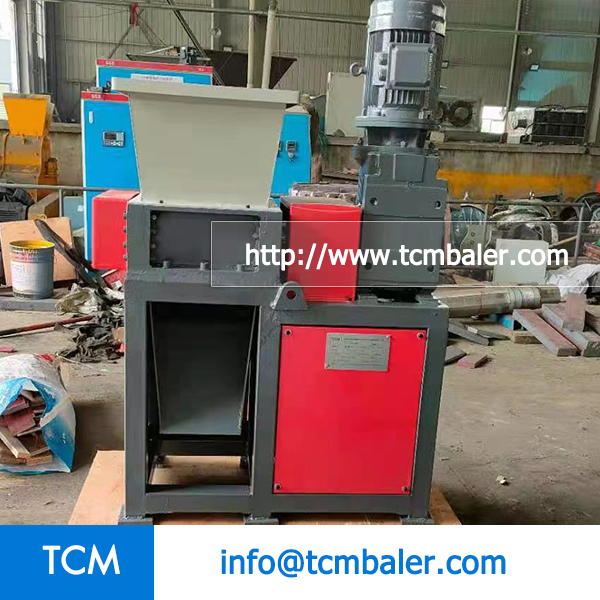

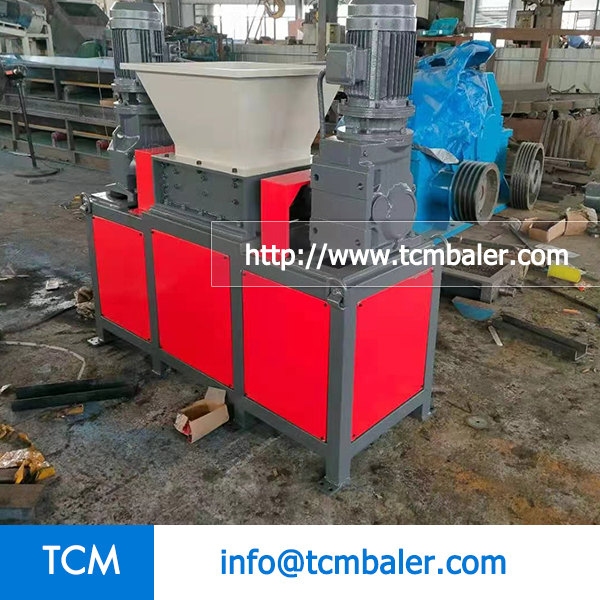

Small Double Shaft Shredder

TCM-MDS series of shredder is the economical machine,mainly used in household, supermarket, office, school, hospitals, applied to shred carton box, waste electrics, waste plastic bottles, and other small hollow materials.

  • Series:MDS
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

1. Blades are Cr12MoV/SKDII.

2. Microcomputer technology incorporating rotor speed variations with start, stop and reverse features.

3. Auto-reverse sensors to protect machine against over loading and jamming.

Application

Parameter

Model Motor power(kw) Rotate Blade(pcs) Fixed Blade(pcs) Blade Thickness(mm) Blade material Rotor diameter(mm) Rotor speed(r/min) Cutting chamber(mm) Size(mm) Capacity(kg/hour)

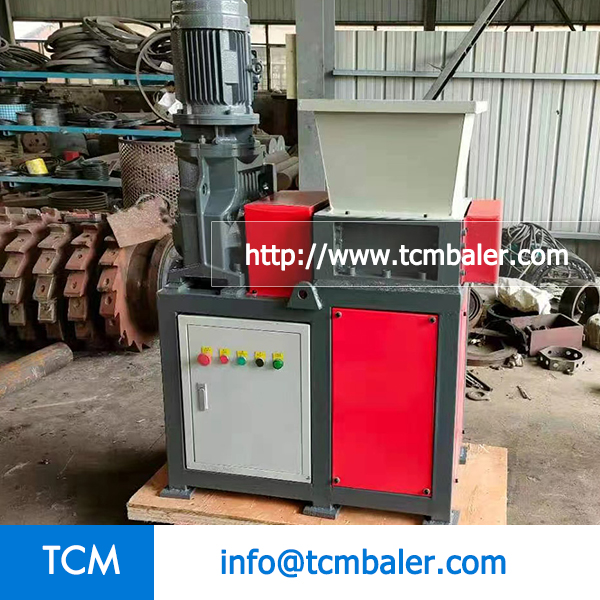

MDS300 3 18 36 10 Cr12MoV/SKDII 160 11-50 320*250 800*700*1100 50-100
MDS400 5.5 20 40 20 Cr12MoV/SKDII 220 11-50 420*350 1000*800*1200 50-150
