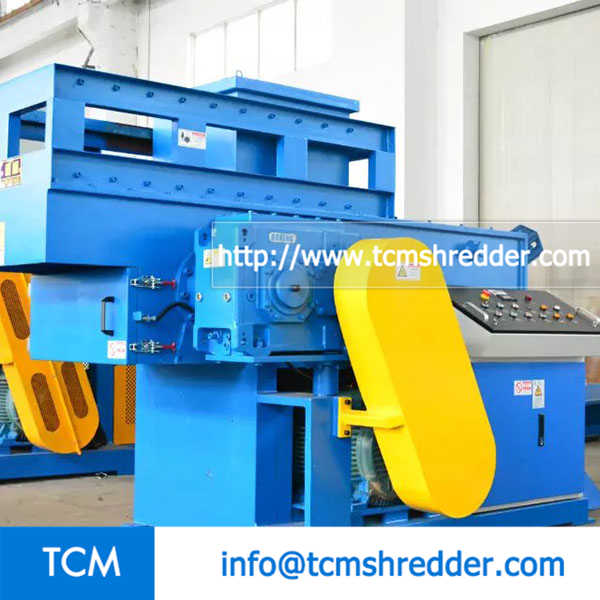

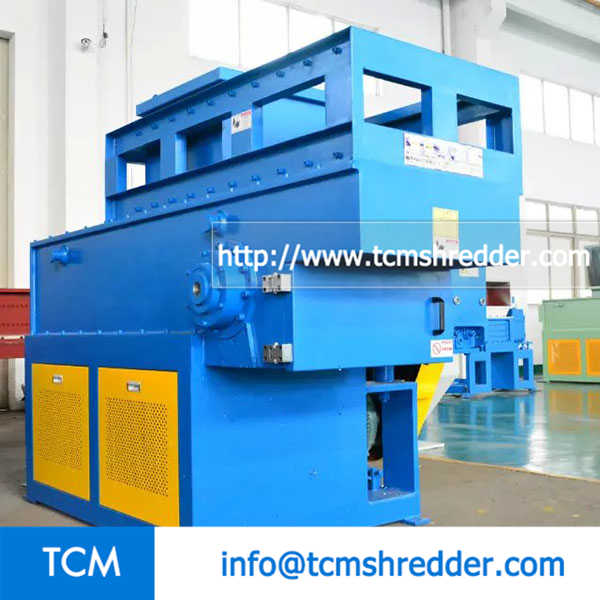

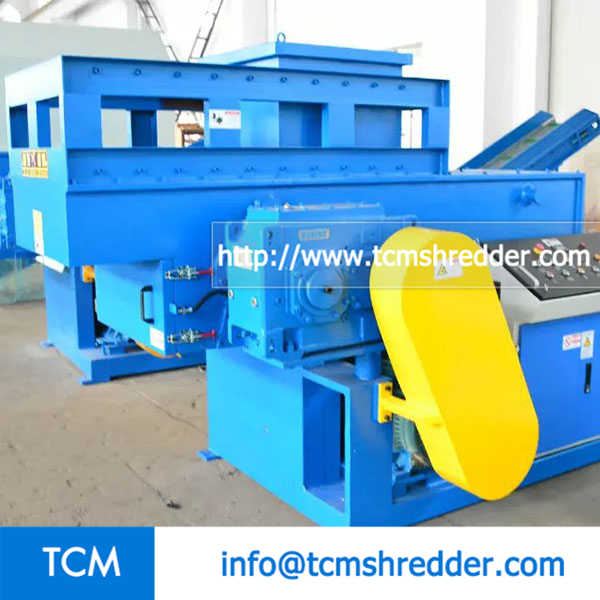

Single Shaft Pipe Shredder

TCM-SP series of shredder is the economical machine,mainly used for processing long and thick walled pipes, and can be adjusted to suit various pipe diameters. Also applicable for plastic lump, like PP, PE, PET, PC, ABS, nylon, plastic film, woven bags,

  • Series:SP
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

Energy Efficient + Maximum Cutting Force & Productivity. Shock Absorbing Gearbox reduces Stress on Drive Components,Rotor Knives can be rotated and used on four edges before replacement,Microcomputer technology incorporating rotor speed variations with start, stop and reverse features.

Long Life Counter Knives can be adjusted to maintain cutter clearance. Quick Change Screens for accurate particle size control,Segmented Shredding Chamber Floor with Brass Guides & PU Slides,Blades are Cr12MoV/SKDII.

Twin Speed Hydraulics with integrated air cooler. Stand Alone Electrical Control Panel with Siemens PLC Control System,Tested, Approved and Certified to the applicable CE safety standards,Auto-reverse sensors to protect machine against over loading and jamming.

Parameter

Model Shredder Motor(Kw) Shredder Moving Knife(pcs) Shredder Fixed Knife(pcs) Crusher Motor Crusher Rotate Knife(pcs) Crusher Fixed Knife(pcs) Blower motor(Kw) Output(kg/h) Feeding Size(mm) Weight(Kg) Dimensions(L*W*H)(mm)

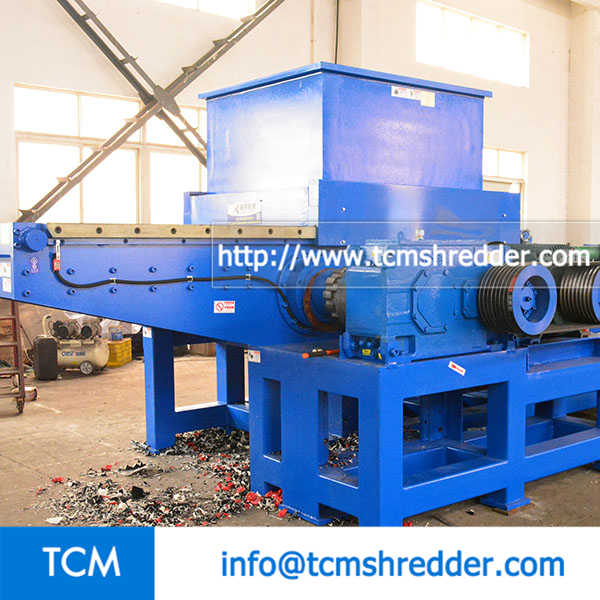

S600 30 30 1 15 15 2 4 500 750*680 4500 3250*1750*2650

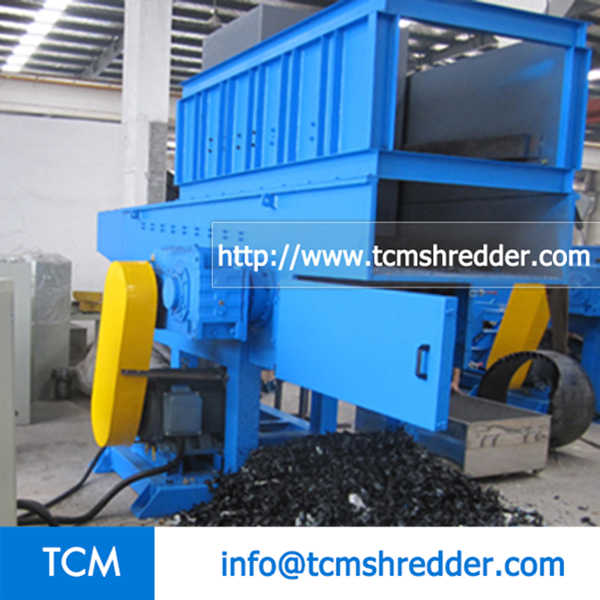

S800 37 39 1 22 21 4 5.5 700 1000*850 7000 4150*1900*2750

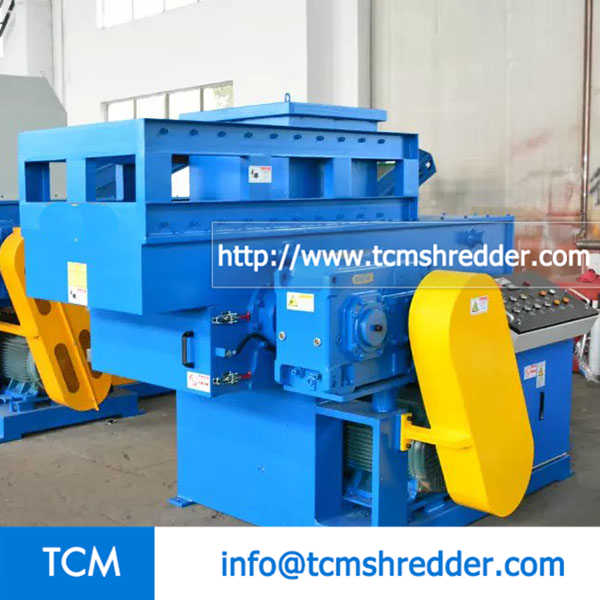

S1000 45 48 1 30 24 4 5.5 900 1200*1050 9500 4700*2550*2950
S1200 55 57 1 37 27 4 7.5 1000 1400*1250 11500 5350*2850*3060
