Single Shaft Shredder

TCM-S series of shredder is the economical machine,mainly used for plastic lump, like PP, PE, PET, PC, ABS, Nylon,Plastic pipes,Film, plastic moulds, textiles, Woven bags,Electronic Waste,Cable, Aluminum cans,Paper,Wood, Sponge, foam, etc.

  • Series:S
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

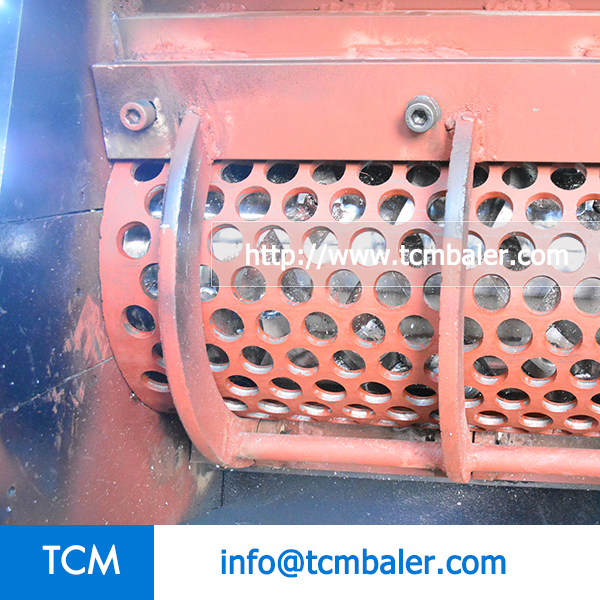

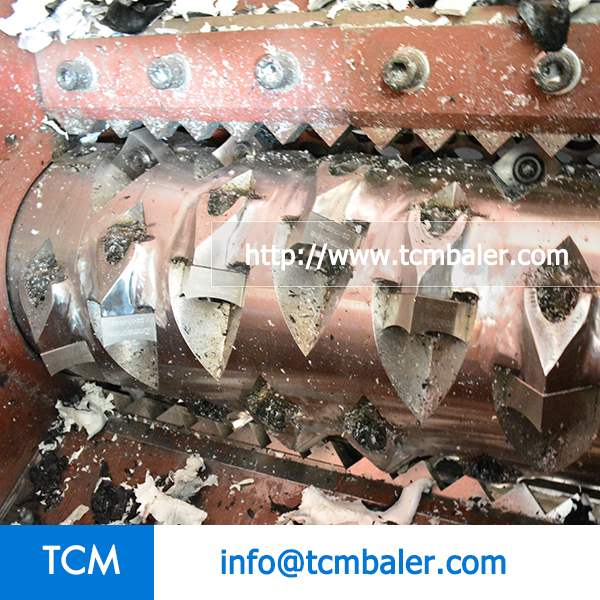

Energy Efficient + Maximum Cutting Force. Productivity Shock Absorbing Gearbox reduces Stress on Drive Components,Rotor Knives can be rotated and used on four edges before replacement. Long Life Counter Knives can be adjusted to maintain cutter's clearance. Quick Change Screens for accurate particle size control,Segmented Shredding Chamber Floor with Brass Guides && PU Slides Twin Speed Hydraulics with integrated air cooler. Stand Alone Electrical Control Panel with Siemens PLC Control System,Tested, Approved and Certified to the applicable CE safety standards.

Parameter

Model Diameter(mm) Rotate Knife Number Fixed Knife Number Output(Kg/h) Motor(Kw) Weight(Kg) Dimensions(L*W*H)

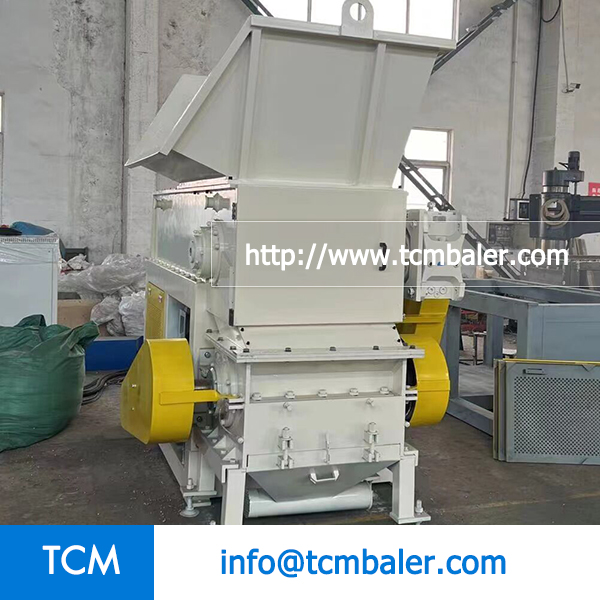

S500 275 24 2 200 18.5 3000 2300*1650*2100

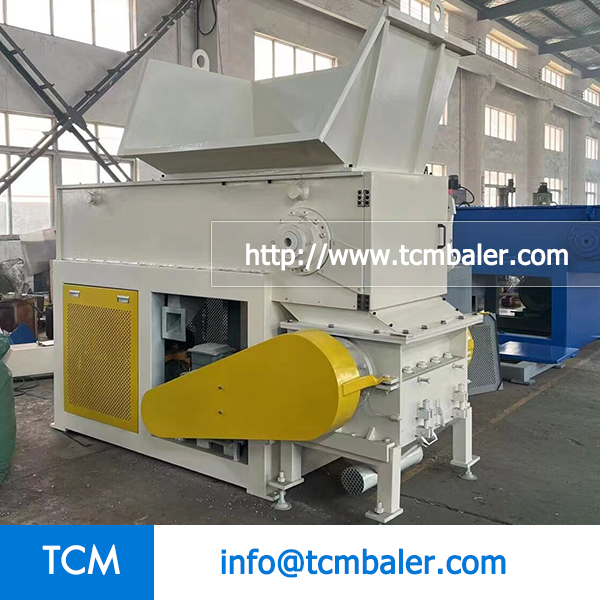

S600 275 30 2 300 22 4000 2300*1750*2200

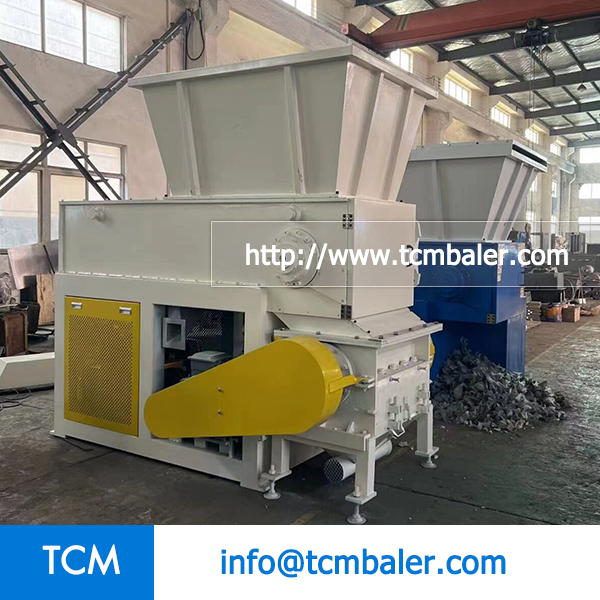

S800 275 39 2 400 30 6000 3150*1900*2350

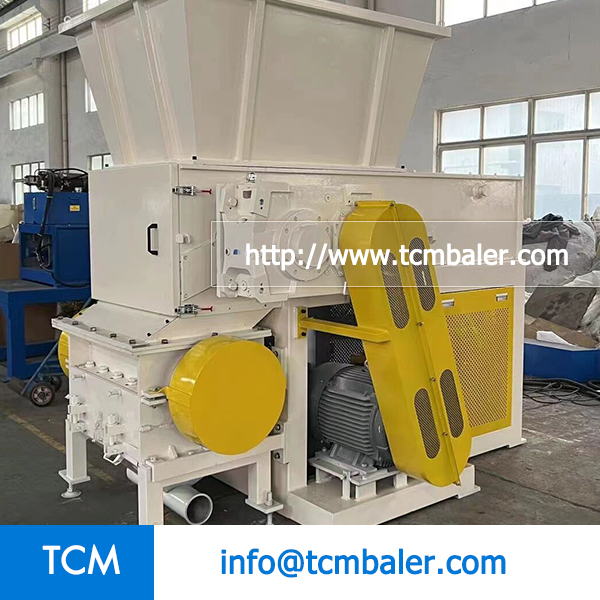

S1000 315 48 2 500 37 8000 3700*2450*2550
S1200 315 57 2 700 45 9500 4350*2750*2660
