Lift Opening Door Semi-Automatic Horizontal Baler

TCM-HPML series of horizontal balers are applied to bale & manual strapping of paper, (cardboard, carton newspaper, etc), waste plastic (plastic film & crate, PET bottle, etc). municipal waste, straw and other loose materials.

  • Series:HPML
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

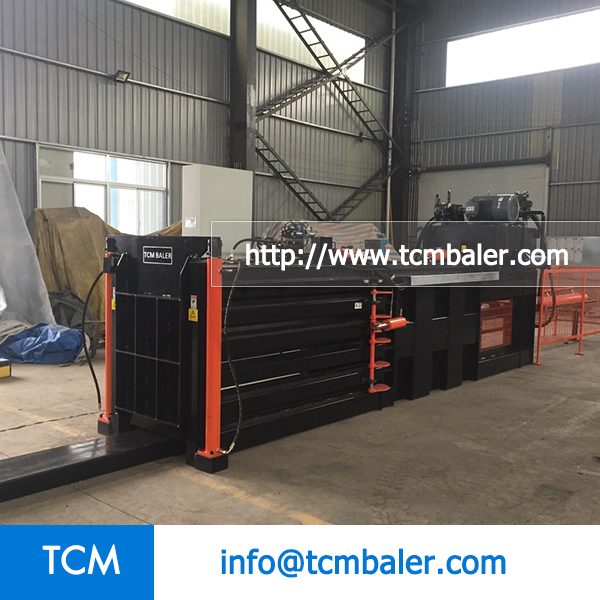

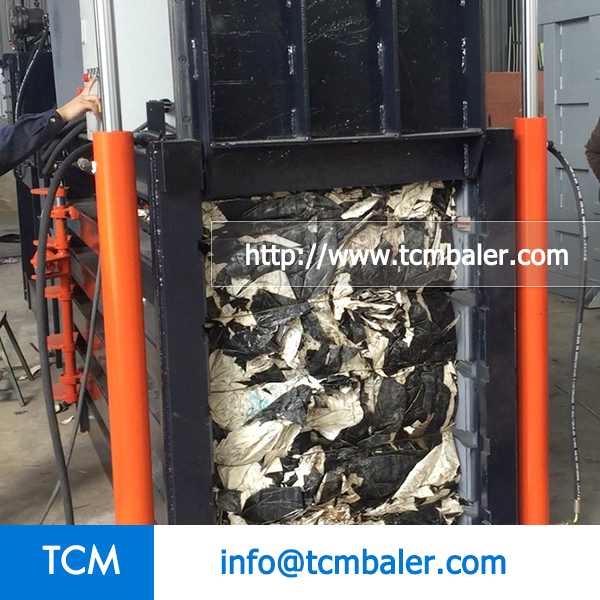

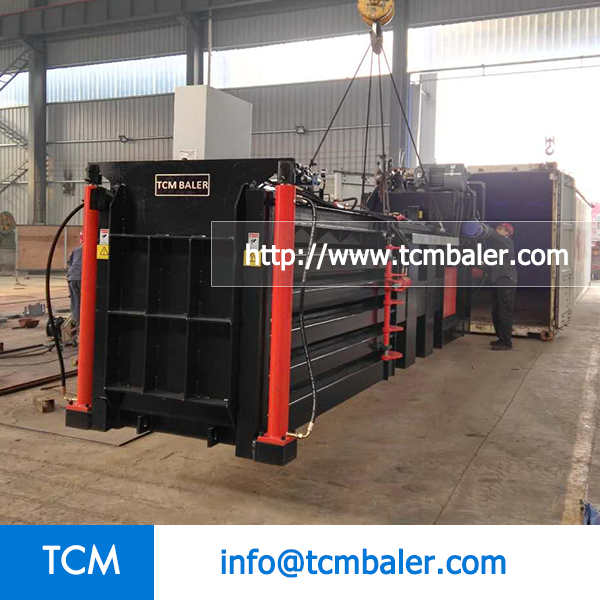

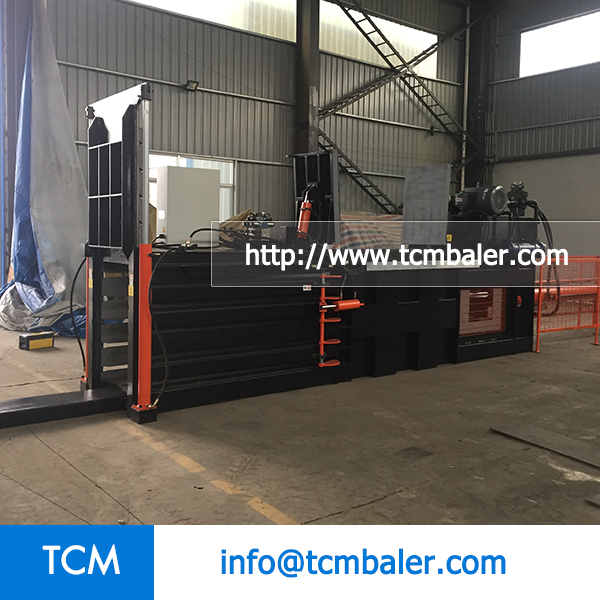

TCM-HPML series of lift opening door horizontal balers use the latest design, simple frame and solid structure. The way to open the feeding door is lifting it. Heavy duty close-gate design for more tighter bales, hydraulic locked gate ensures more convenient operation, unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters.

All series baling press machine have semi-automatic operation, so they are easy to learn, operate and maintain. Particular anti-slide design of the machine makes nicer bales, Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals .

We make it can be adjustable bale size and weight to meet customer's requirement. The bale length and weight can be set arbitrarily, Also the bale size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.

Adopt foreign famous seal, valve, electric components. The press heads are specially processed by plano miller, ensures the precise running of the ram,Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine, just installing on the flat ground is ok.

Parameter

Model Hydraulic power Bale size (W*H*L) mm Strapping Number Bale Weight (kg) Motor(Kw/Hp) Main Machine Size (L*W*H) mm Bale Out Model

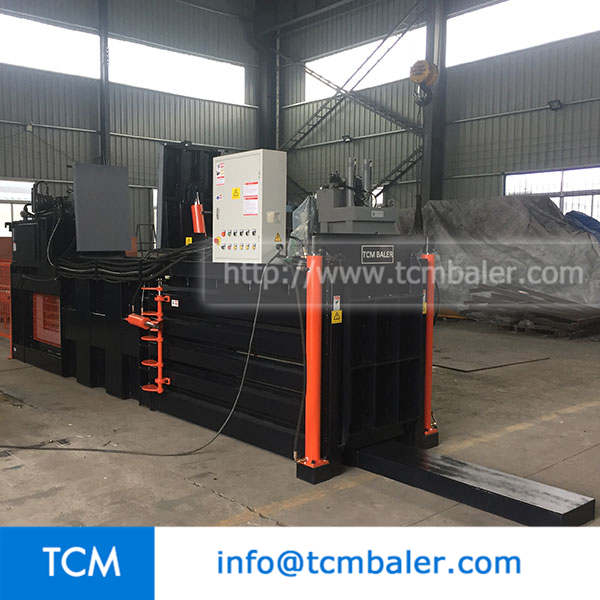

HPML40 40 720*720*(300-1000) 4 250-350 15Kw/20Hp 5500*1150*1900 One Time Out

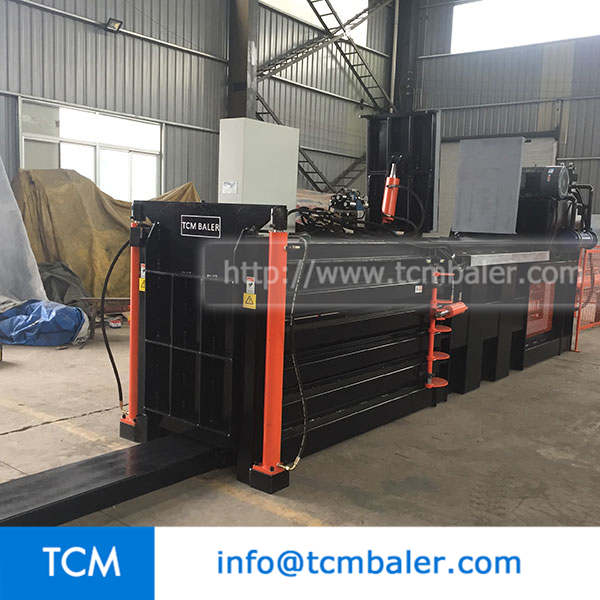

HPML60 60 750*850*(300-1100) 4 350-500 18.5Kw/25Hp 6000*1200*1950 One Time Out

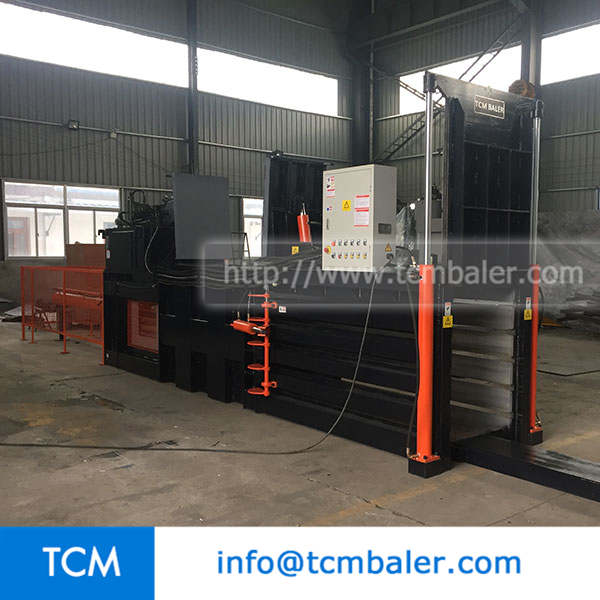

HPML80 80 1100*800*(300-1100) 4 500-600 22Kw/30Hp 6900*1870*2000 One Time Out

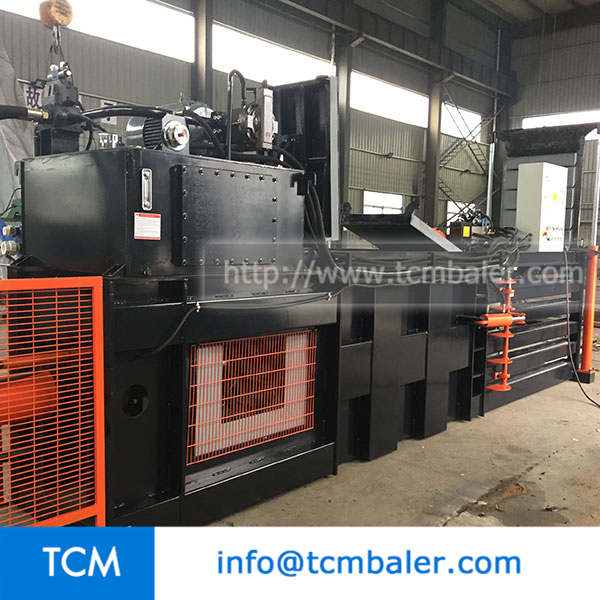

HPML100 100 1100*1100*(300-1200) 5 600-800 30Kw/40Hp 7600*1650*2500 One Time Out

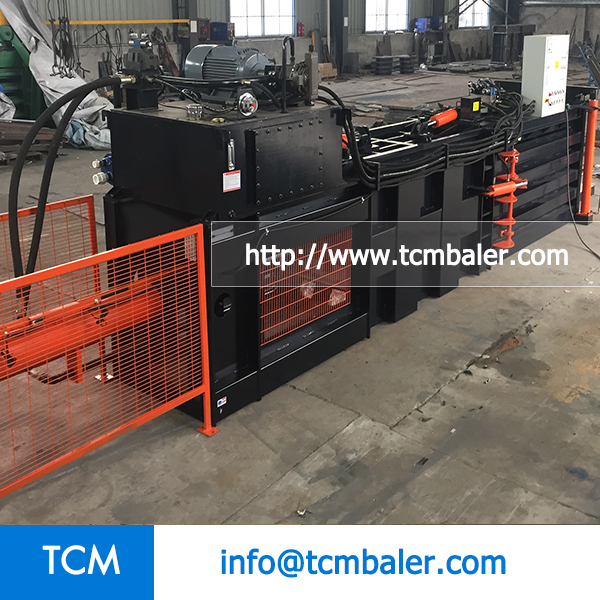

HPML125 125 1100*1200*(300-1200) 5 800-1000 37Kw/50Hp 7600*1650*2500 One Time Out

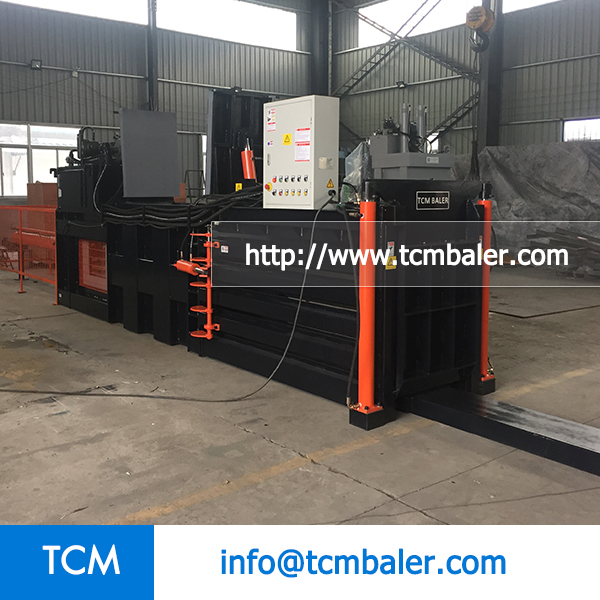

HPML150 150 1100*1200*(300-1300) 5 1000-1200 45Kw/60Hp 8800*1850*2650 One Time Out
