Details
Energy Efficient + Maximum Cutting Force & Productivity. Shock Absorbing Gearbox reduces Stress on Drive Components，Rotor Knives can be rotated and used on four edges before replacement，Microcomputer technology incorporating rotor speed variations with start, stop and reverse features.
Long Life Counter Knives can be adjusted to maintain cutter clearance. Quick Change Screens for accurate particle size control，Segmented Shredding Chamber Floor with Brass Guides & PU Slides，Blades are Cr12MoV/SKDII.
Twin Speed Hydraulics with integrated air cooler. Stand Alone Electrical Control Panel with Siemens PLC Control System，Tested, Approved and Certified to the applicable CE safety standards，Auto-reverse sensors to protect machine against over loading and jamming.
Parameter
| Model | Motor(Kw) | Rotate Knife number | Fixed knife number | Output(kg/h) | Feeding Size(L*W) | Weight(Kg) | Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|

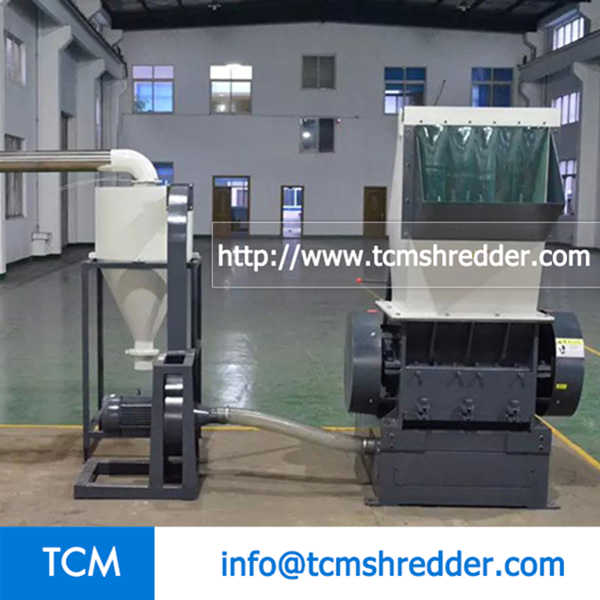

| PC400 | 7.5 | 2 | 12 | 100-150 | 450*350 | 550 | 900*780*1400 |

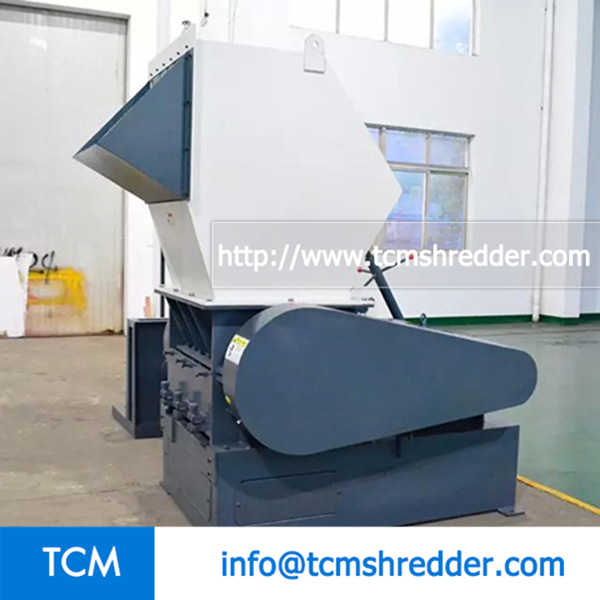

| PC500 | 15 | 2 | 15 | 200-250 | 550*450 | 780 | 1100*880*1600 |

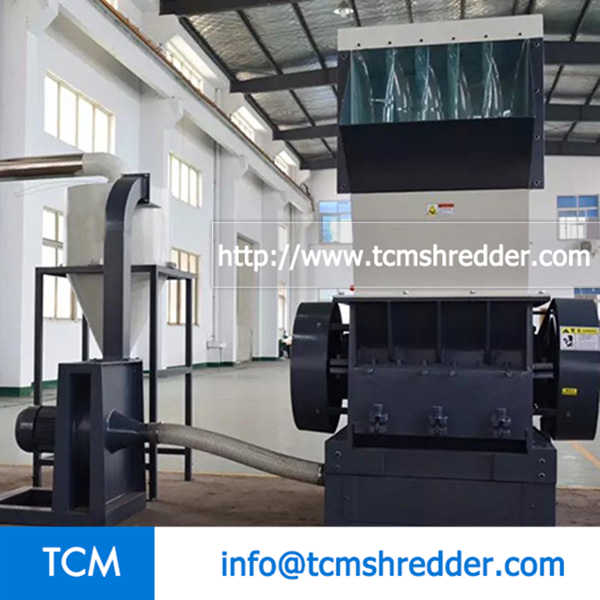

| PC600 | 18.5 | 4 | 18 | 300-350 | 650*450 | 1550 | 1400*1300*2450 |
| PC700 | 22 | 4 | 21 | 450-500 | 750*500 | 1900 | 1500*1400*2500 |
| PC800 | 30 | 4 | 24 | 600-700 | 850*600 | 2600 | 1550*1550*2450 |

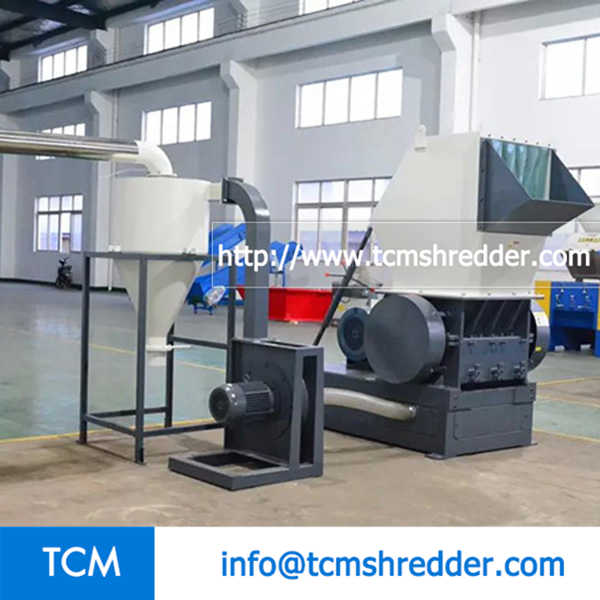

| PC900 | 37 | 4 | 27 | 700-800 | 950*700 | 3600 | 1700*1680*2860 |

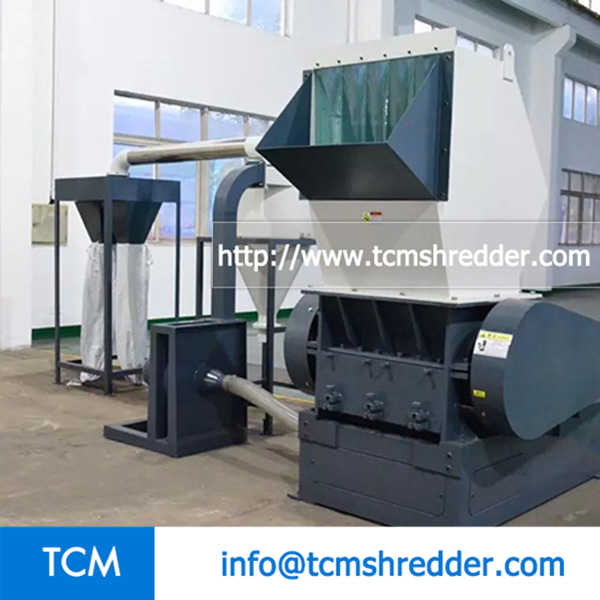

| PC1000 | 45 | 4 | 30 | 800-900 | 1050*800 | 4300 | 1800*1760*2800 |
