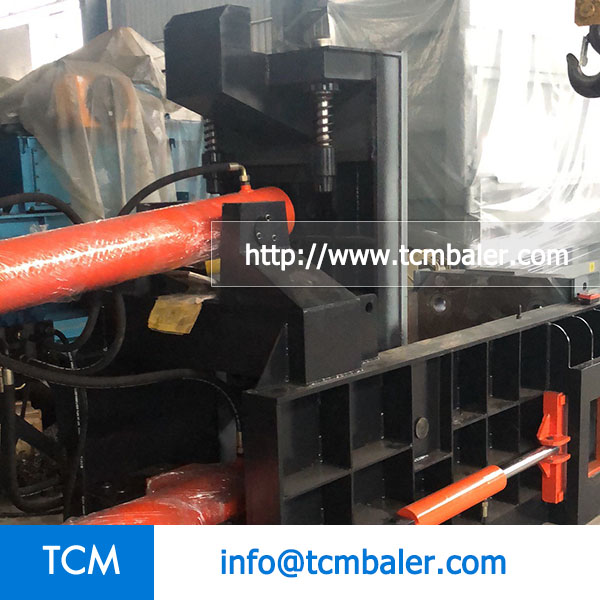

Scrap Metal Push-out Baler

TCM-MC series of hydraulic baler are applicable in recycling companies, to press metal scraps (steel, copper, aluminum,stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of t

  • Series:MC
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

Bale comes out by push-out is the feature of TCM-MC series baling machine. The series baler machine can suitable for steel, copper, aluminum, stainless steel, discarded automobiles) and it can bale these materiel into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.

TCM-MC series baling press baler have two operation control, one is manual valve operation, and another is PLC control, and it's optional on customer's requirements, Chamber size, bale size, bale shape can be customized.

Cutting function to improve the efficiency. The feeding chamber has cutting function to prevent additive materials caused by carelessness and safety accident, Adopt double pressure protection device.No footing bolts needed in installation, diesel engine can be equipped for power.

Adopt foreign famous seal, valve, electric components Adopt the German hydraulic technology to save energy and protect environment, and the brand valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.

Parameter

Model Hydraulic Power(Ton) Motor(Kw/hp) Voltage(Customized) Bale Size(L×W×H)(mm) Chamber Size(L×W×H)(mm) Bale Weight(kg) Control System
MC125 125 18.5/25 200-680V/3phase 250×250/300×300 1200×700×600 50-70 Manual or PLC

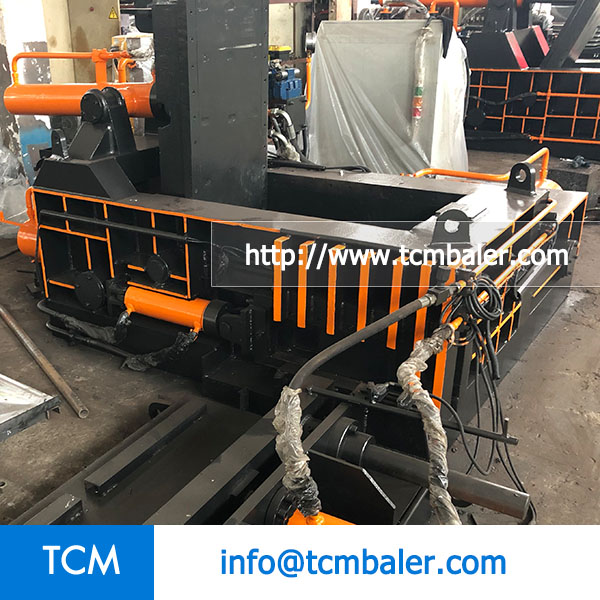

MC135 135 22/30 200-680V/3phase 350×350 1400×900×700 1800-2200 Manual or PLC

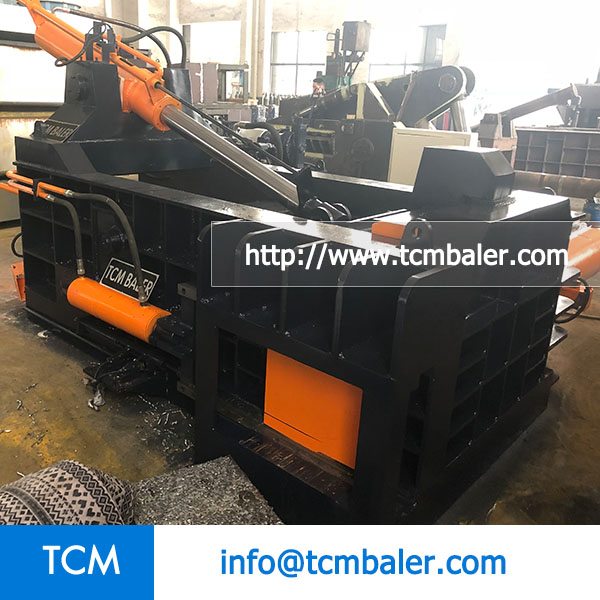

MC160 160 22/30 200-680V/3phase 400×400 1600×1200×800 100-200 Manual or PLC

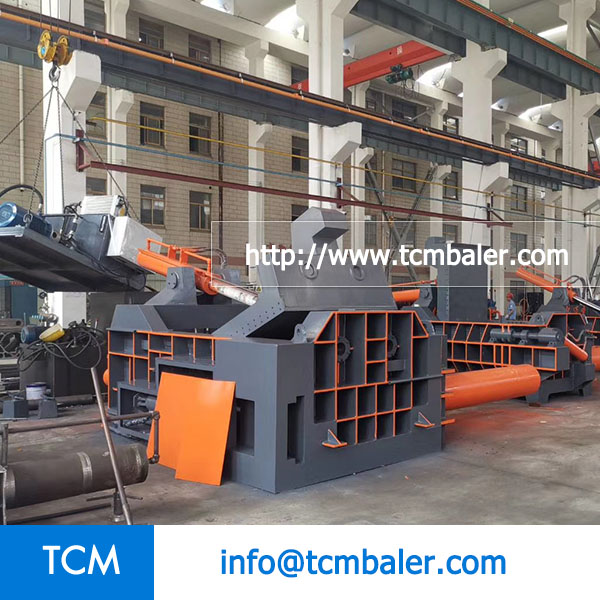

MC200 200 37/50 200-680V/3phase 450×450 1800×1400×800 180-350 Manual or PLC

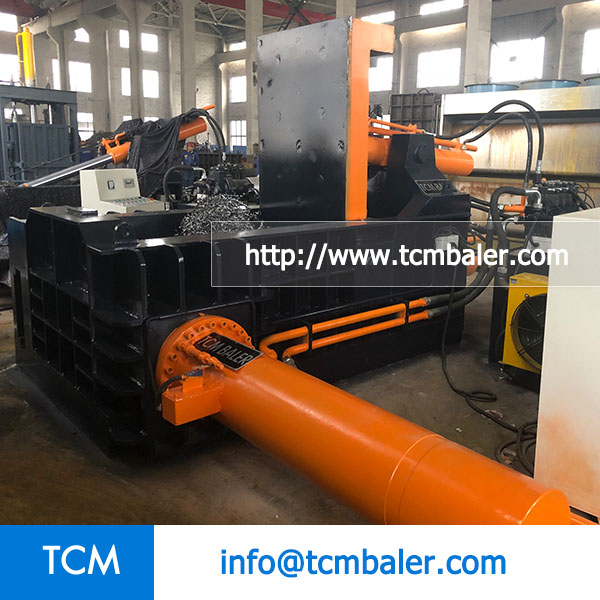

MC250 250 44/60 200-680V/3phase 500×500 2000×1750×1000 200-450 Manual or PLC
MC315 315 45×2/120 200-680V/3phase 600×600 2600×2000×1200 400-700 Manual or PLC
