Double Shafts Shredder

TCM-DS series twin-shaft shredders have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. Depending on input material an

  • Series:DS
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

Energy Efficient + Maximum Cutting Force & Productivity. Shock Absorbing Gearbox reduces Stress on Drive Components,Rotor Knives can be rotated and used on four edges before replacement,Microcomputer technology incorporating rotor speed variations with start, stop and reverse features.

Long Life Counter Knives can be adjusted to maintain cutter clearance. Quick Change Screens for accurate particle size control,Segmented Shredding Chamber Floor with Brass Guides & PU Slides,Blades are Cr12MoV/SKDII.

Twin Speed Hydraulics with integrated air cooler. Stand Alone Electrical Control Panel with Siemens PLC Control System,Tested, Approved and Certified to the applicable CE safety standards,Auto-reverse sensors to protect machine against over loading and jamming.

Parameter

Model Tool Motor(kw) rotation rate(r/min) Tool Number Capacity(kg/h) Feeding Size(mm)

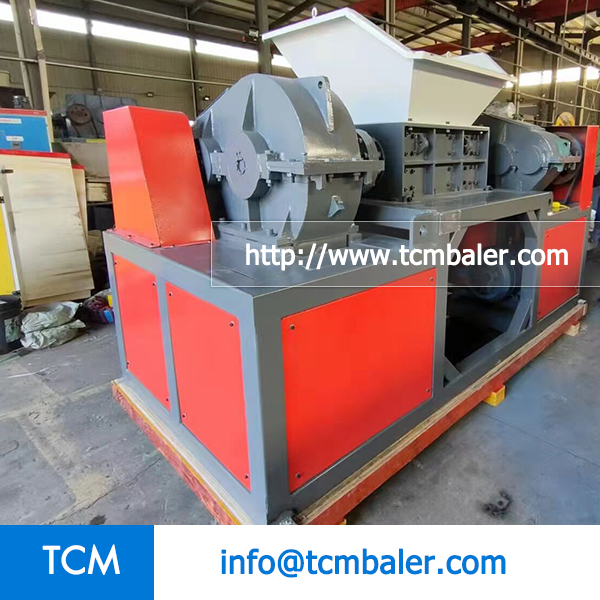

DS500 Φ220*20 7.5*2 10-20 24 500-1200 500*420
Φ250*20 11*2 24 500*470
Φ300*25 15*2 20 520*560

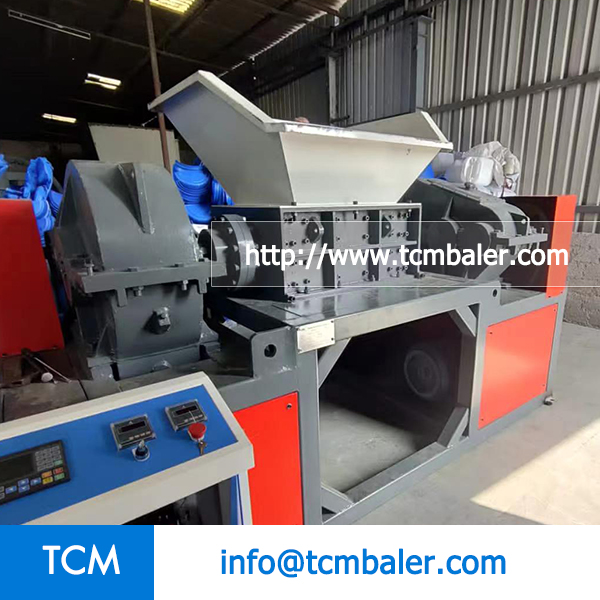

DS600 Φ250*20 11*2 10-20 30 800-2000 620*470
Φ300*30 15*2 20 620*560
Φ350*50 18.5*2 12 620*670

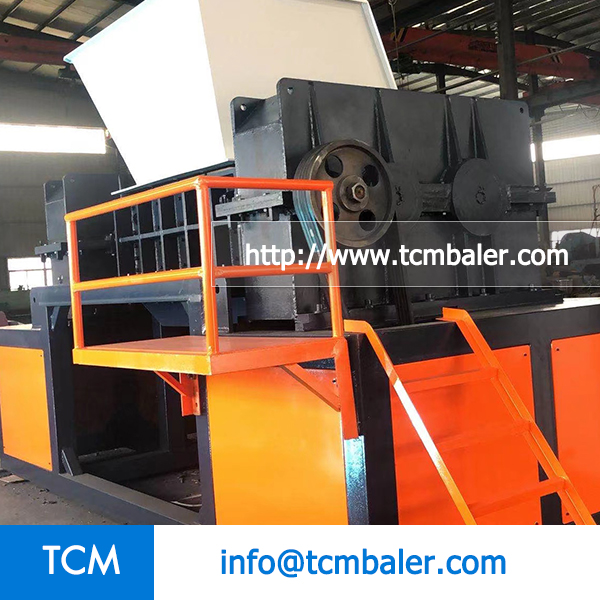

DS800 Φ250*20 15*2 10-20 40 1000-2500 820*470
Φ300*30 18.5*2 24 820*560
Φ350*35 18.5*2 22 820*670
Φ400*40 22*2 20 820*750

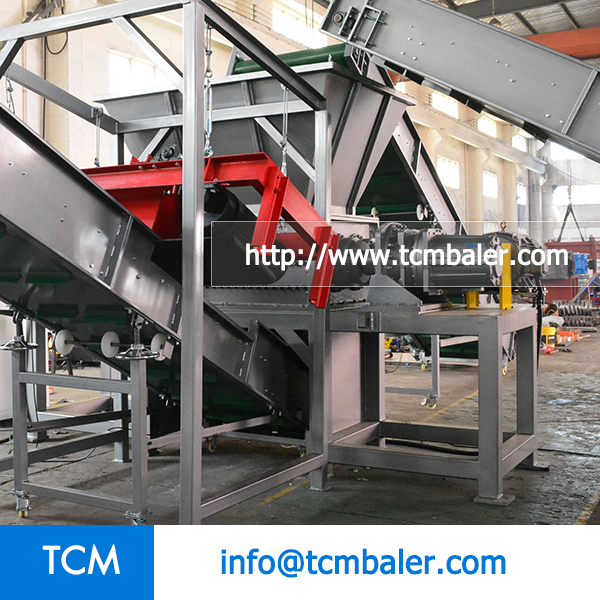

DS1000 Φ300*30 18.5*2 10-20 32 2000-4000 980*560
Φ350*35 22*2 28 1000*670
Φ400*40 22*2 24 980*750
Φ450*45 30*2 22 1010*840

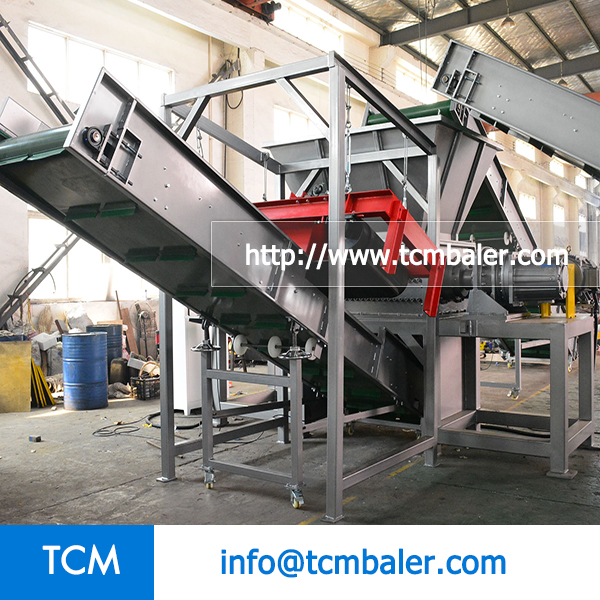

DS1200 Φ350*30 22*2 10-20 40 2000-5000 1220*670
Φ400*40 30*2 30 1220*750
Φ450*45 37*2 26 1190*840
Φ500*50 45*2 24 1220*920

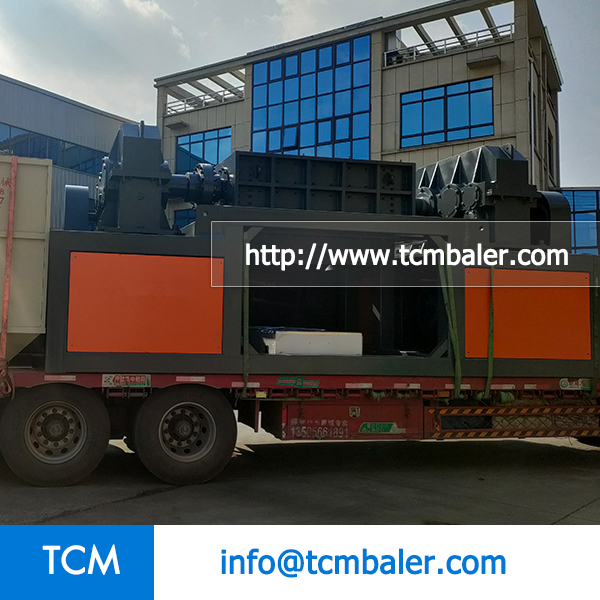

DS1500 Φ400*30 30*2 10-20 50 2000-5000 1520*750
Φ450*40 37*2 36 1460*840
Φ500*50 45*2 30 1520*920
Φ550*50 55*2 30 1520*1000
DS2000 Φ600*50 55*2 10-20 40 4000-15000 2020*1000
Φ700*70 75*2 28 1980*1220
Φ800*100 90*2 20 2020*1450
