Scrap Metal Turn-out Baler

TCM-MF series of hydraulic baler are applicable in recycling companies, to press metal scraps (steel, copper, aluminum,stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of t

  • Series:MF
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

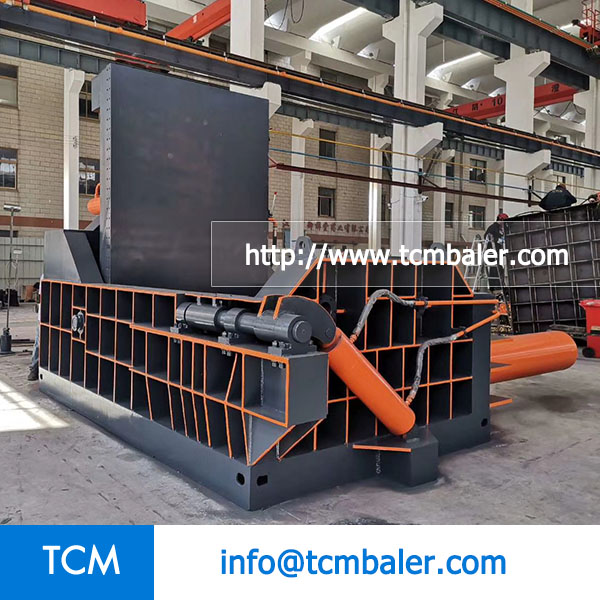

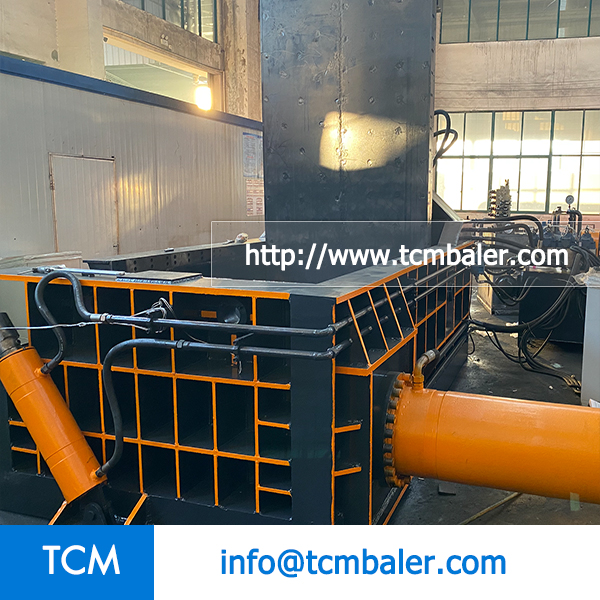

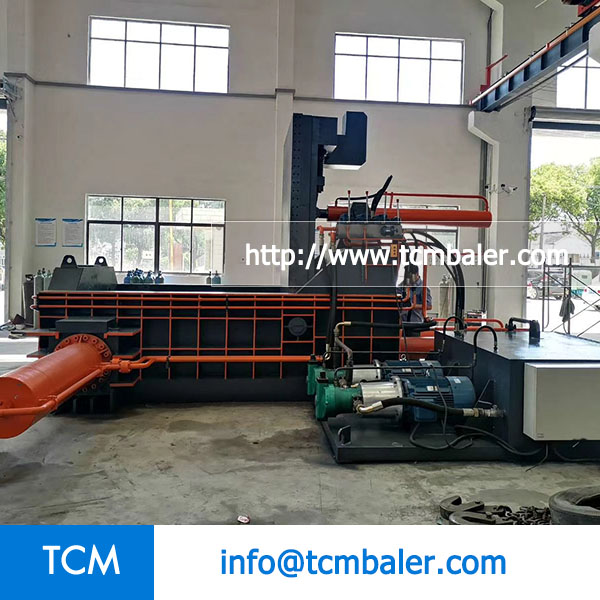

TCM-MF series scrap metal turn-out baling press machine has many advantages, bale comes out by turn-out, and suitable for steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.

You have optional operation for you to choose. This series baler have two operation control, one is manual valve operation, and another is PLC control, and it's optional on customer's requirements, Chamber size, bale size & bale shape can be customized. Cutting function to improve the efficiency.

The feeding chamber has cutting function to prevent additive materials caused by carelessness and safety accident, Adopt double pressure protection device. No footing bolts needed in installation, diesel engine can be equipped for power. Adopt the German hydraulic technology to save energy and protect environment, and the brand valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.

Parameter

Model Hydraulic Power(Ton) Motor(Kw/hp) Voltage(Customized) Bale Size(L×W×H)(mm) Chamber Size(L×W×H)(mm) Bale Weight(kg) Control System

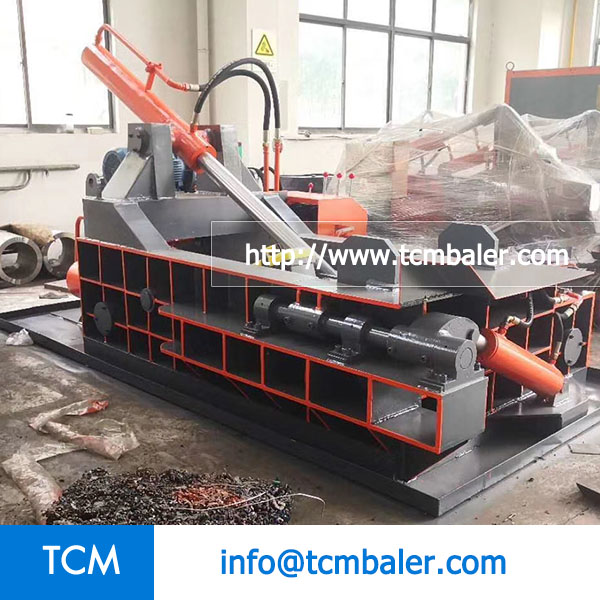

MF125 125 15/20 200-680V/3phase 250×250/300×300 1200×700×600 50-70 Manual or PLC

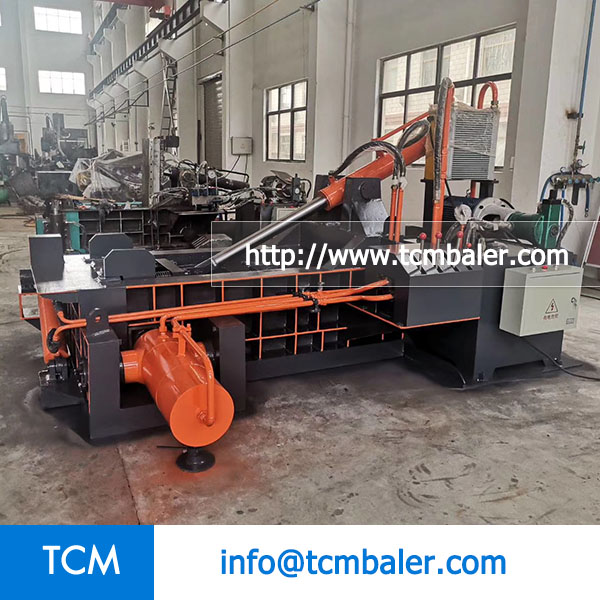

MF135 135 22/30 200-680V/3phase 350×350 1400×900×700 80-120 Manual or PLC

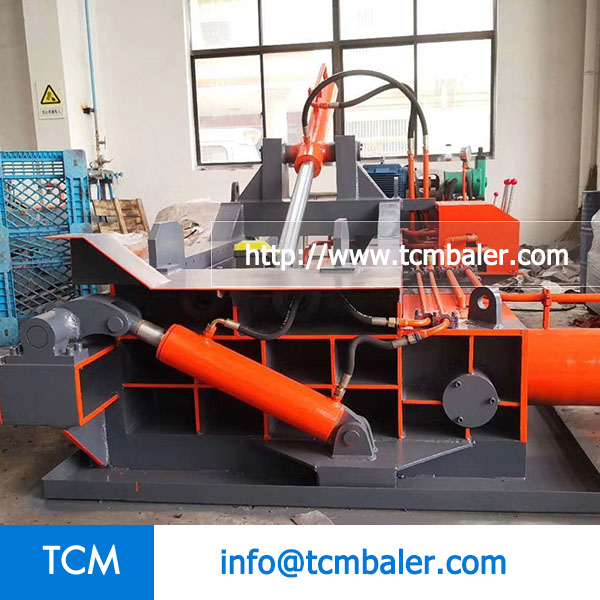

MF160 160 22/30 200-680V/3phase 400×400 1600×1200×800 100-180 Manual or PLC

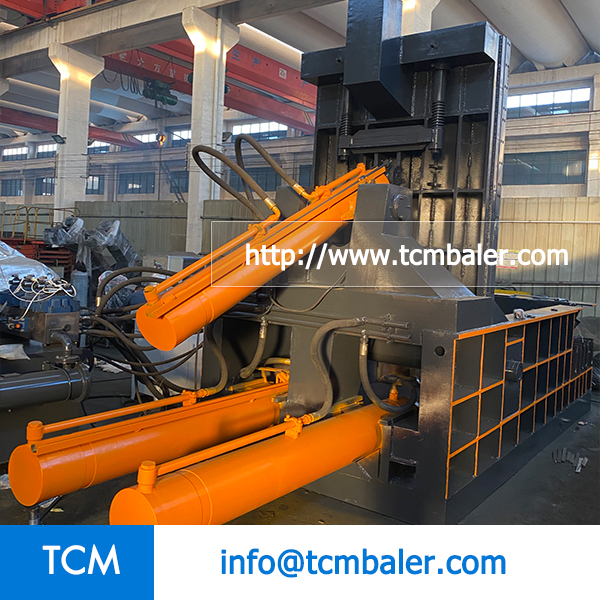

MF200 200 37/50 200-680V/3phase 450×450 1800×1400×800 180-350 Manual or PLC
MF250 250 22×2/60 200-680V/3phase 500×500 2500×2000×1000 250-600 Manual or PLC

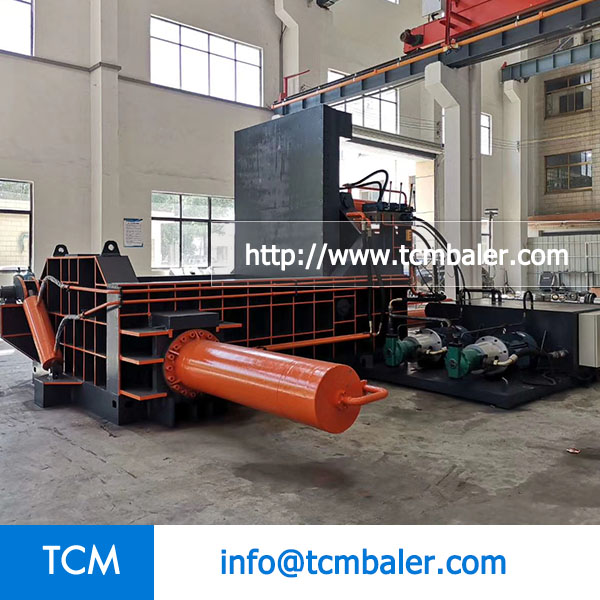

MF315 315 45×2/120 200-680V/3phase 600×600 2600×2000×1200 400-700 Manual or PLC
