Single Cylinder Vertical Baler

TCM-SG Series baler is mainly used for baling cars,cardboard, cot yarn,fiber,sacks,wool tops,plastic film and bottle,thin metal, pet bottles, etc. Also can be used for marine and living rubbish.

  • Series:SG
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

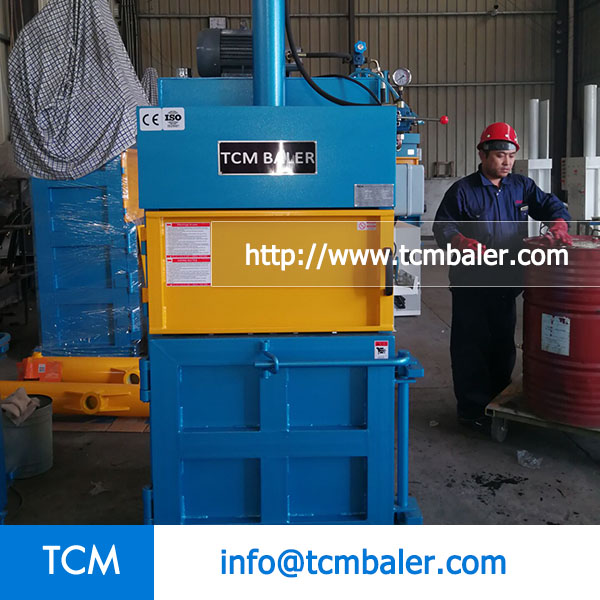

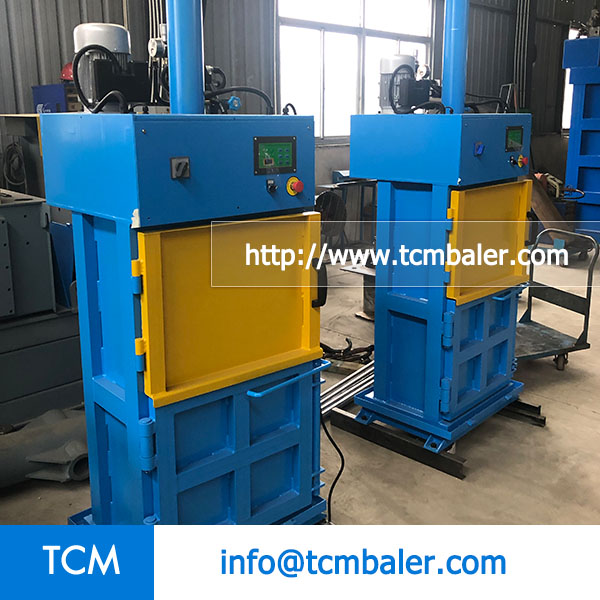

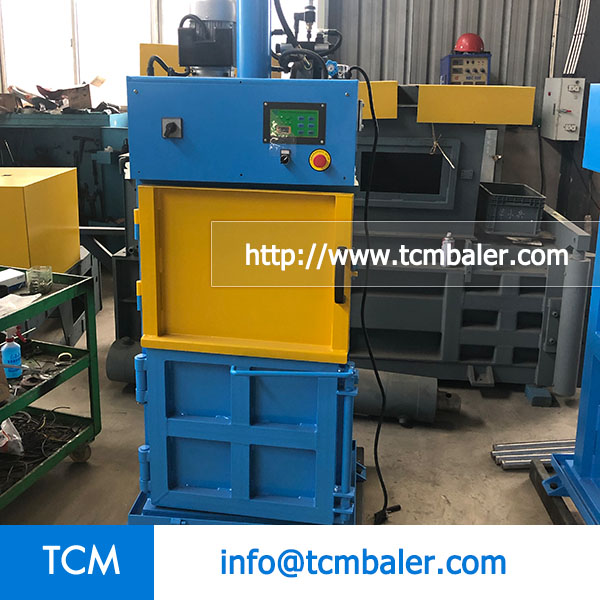

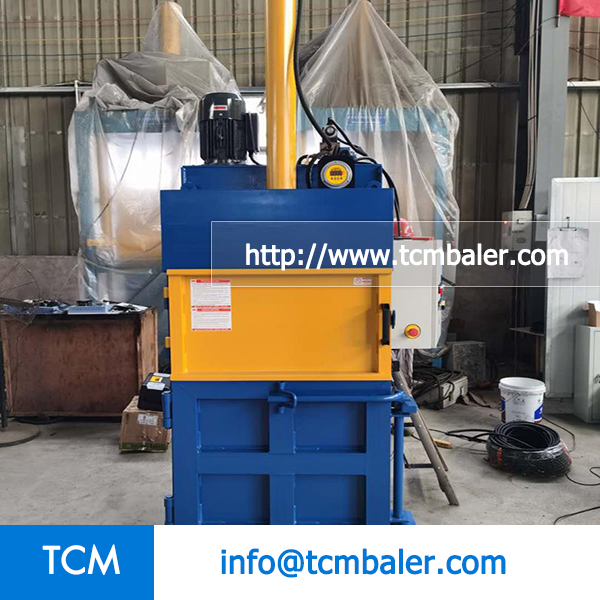

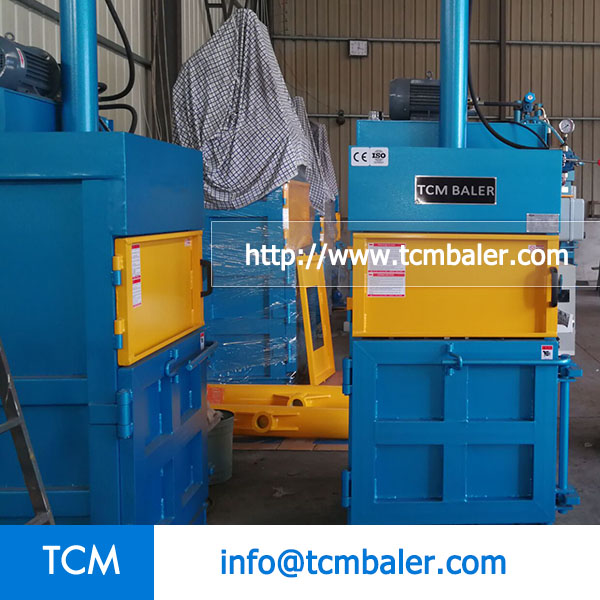

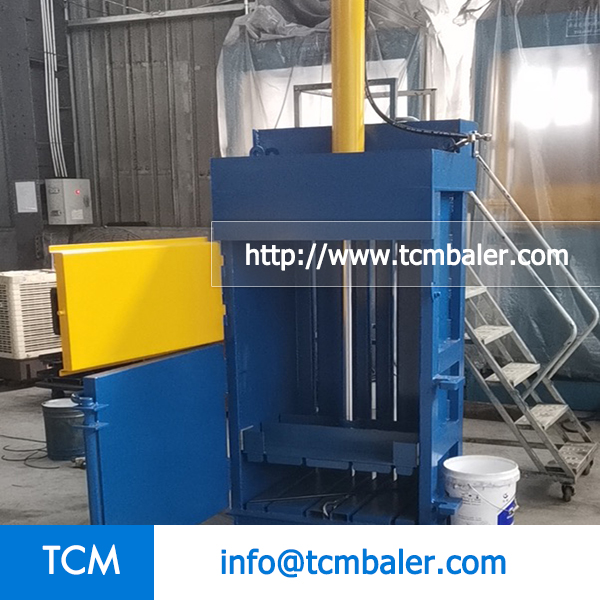

TCM-SG Series single cylinder vertical baler is one kind of vertical baler machine, it has four models for our customer to choose. IT can bale many kinds of materiel just like waste paper, waste cartoon, pet bottles, aluminum cans and so on.

Some people always call it waste paper baling press machine, cartoon compressor machine or cans baler and so has great power to compress what you want to bale, and after baled by it you can storage and transportation easily.

It is a must-have piece of equipment for any plastic or can recycling operation, and is ideal for crushing hollow products such as PET bottles and aluminum cans into compact bales.

It combines baling and draining in one step. The liquid tray drainage system serves to catch fluid residues in bottles and cans. This is excreted during the crushing process. It makes for a far neater and safer recycling area.

Feature of Single Cylinder Vertical Baler

* Small model more convenient, single phase, suitable for compressing small materials.

* Strapped without opening the door, easy to operate.

* Pushing package automatically.

* Safety interlock, more reliable.

* Adopt many kinds of sealing parts, improve the life time of oil cylinder.

* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.

* Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.


Model Power(Ton) Bale Size(L*W*H)mm Feeding Size(L*H)mm Bale Weight(Kg) Motor(Kw/Hp) Machine Size(L*W*H)mm Weight(Kg)
SG10 10 600*400*(400-600) 600*350 40-60 2.2Kw/3Hp 900*700*2100 700
SG20 20 800*600*(300-800) 800*500 70-90 4Kw/5.5Hp 1100*850*2850 900
SG30 30 800*600*(300-800) 800*500 100-120 5.5Kw/7.5Hp 1100*850*2850 1050
SG40 40 1100*700*(500-900) 1100*550 180-150 7.5Kw/10Hp 1500*1000*3150 1600
