Household/Marine Vertical Baler

TCM-VCH Series baler is mainly applied for baling waste cartons,,thin metal,tins, iron cans,pet bottles,living rubbish, etc.Widely used in restaurants, supermarket, hospitals, community,school, office building and ship etc.

  • Series:VCH
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

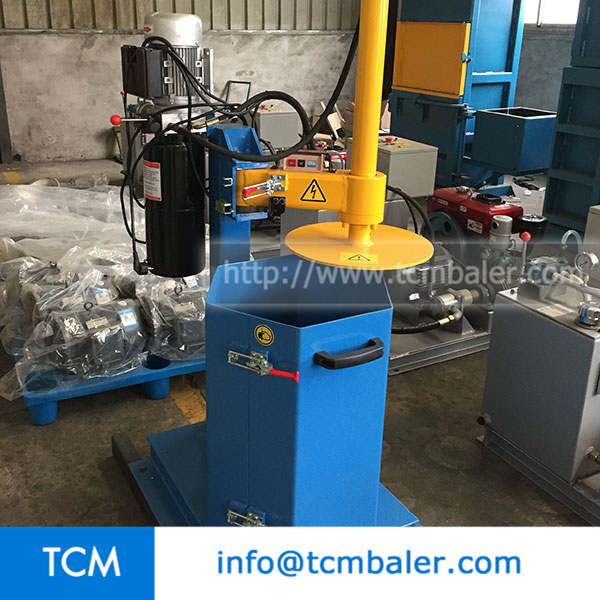

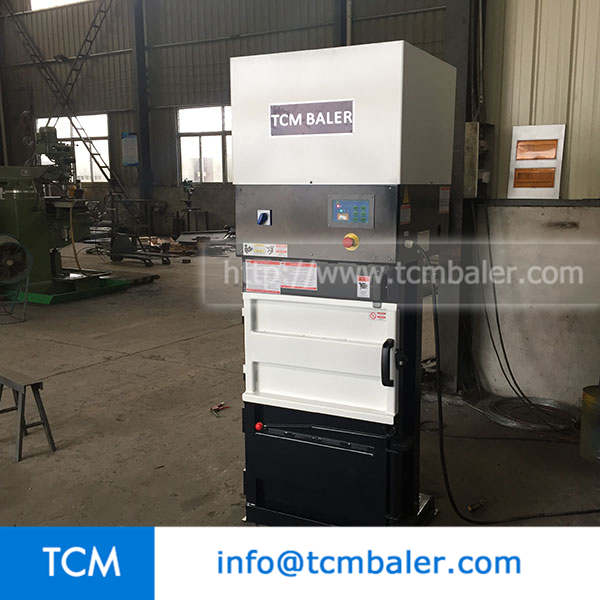

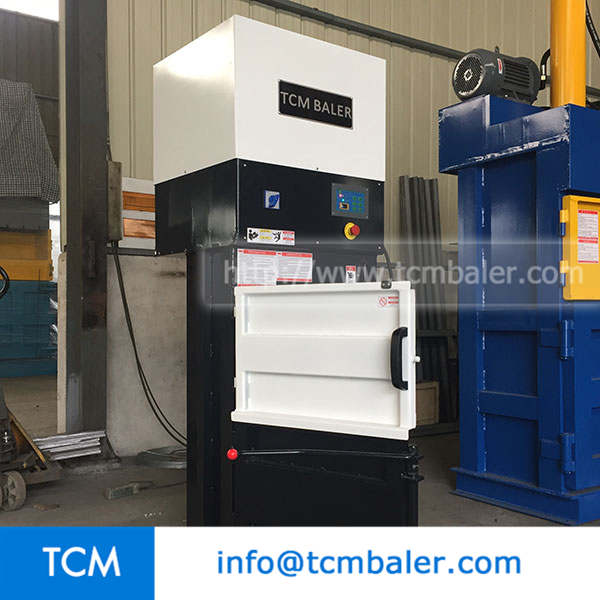

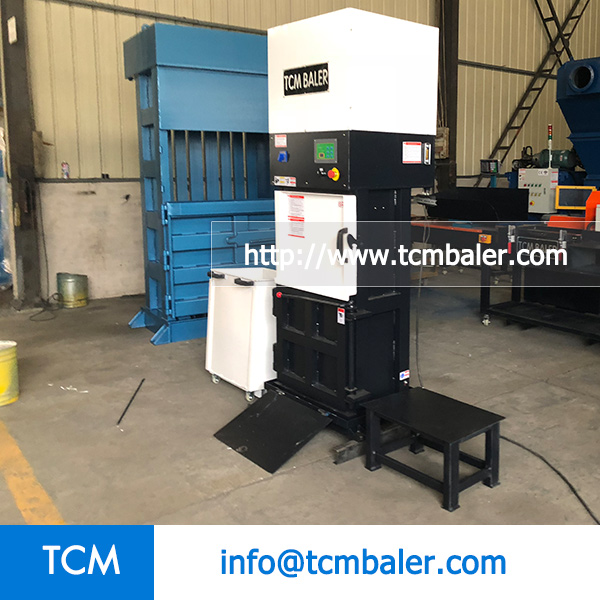

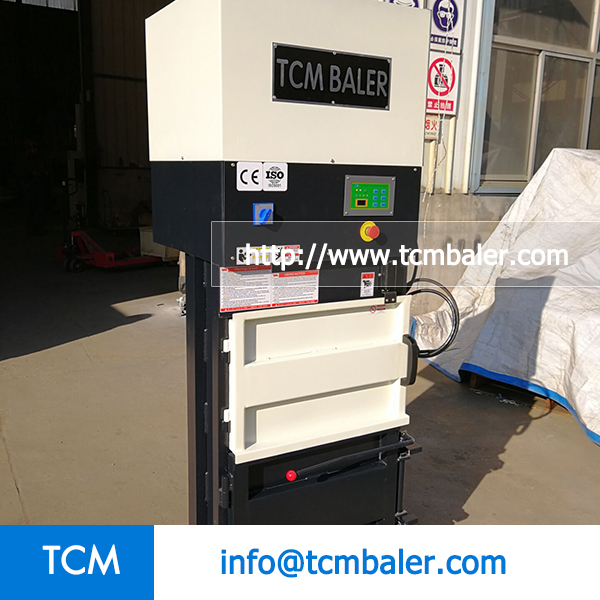

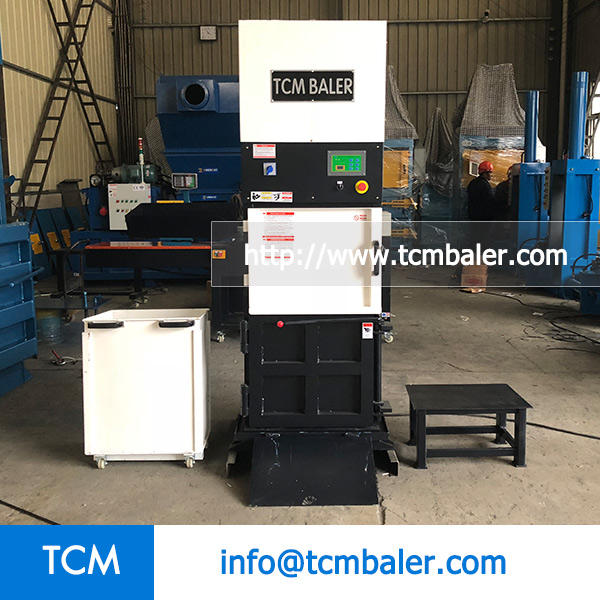

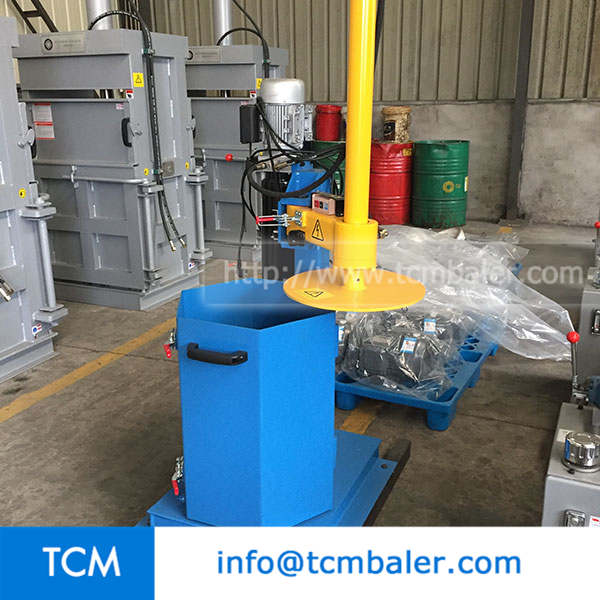

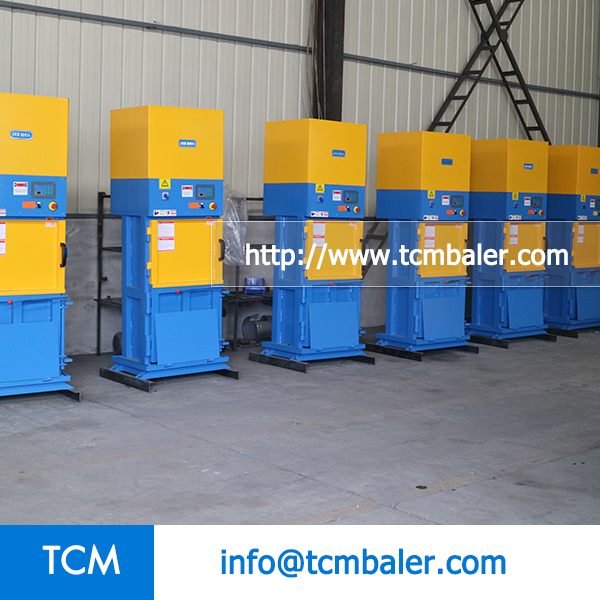

TCM-VCH series household vertical baler is also known as marine compactor marine baling pressing machine.It has four models for you to choose.

household vertical baling machine is specially designed for compressing daily trash or garbage. The materials for our machine to bale can be paper, carton, aluminum or steel cans, PET bottles, and any other soft packaging materials. Even kitchen and organic waste that has considerable water content can be compressed by our baler machine. The bucket of TCM household baler machine is made of stainless steel which ensures no rust problem even when compressing waste that contains liquid.

The hydraulic compressing platen can slide from one position to another. You can slide it away from the above of the bucket when it is time for loading materials. And you can slide it back above the bucket once it is time for pressing. It is very convenient and user friendly in operation. Waste material is always compressed into a plastic bag which is pre-placed around the bucket. This can keep the working area clean and dry. Once the compression is completed and ram has returned, you simply knot the bag and take away the bagged bale. This is very easy and efficient.

Through compacting the garbage/trash volume is greatly reduced, not only the working environment is improved with more space and less mess, but also the waste disposal cost can be reduced with less visiting frequency of dumpsters and hauls as well as saving precious landfill space.

Features of TCM-VCH series marine vertical Baler pressing machine

(1) Small model more convenient, single phase, suitable for compressing small materials.

(2)Strapped without opening the door, easy to operate.

(3) Pushing package automatically.

(4) Safety interlock, more reliable beyond your think.

(5) Adopt England brand sealing parts, improve the life time of oil cylinder.

(6) Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.

(7) Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.



Model Hydraulic Power(Ton) Barrel Diameter(mm) Barrel Height(mm) Cylinder Stroke(mm) Trash Bag Size(mm) Power bale size(mm) Weight(KG)
VCH4 4 450 700 680 800X1000 0.75/1 920×890×1800 200
VCH5 5 600×420(300-700) 600×420 6-8 15-60 1.1/1.5 800×550×1900 300
VCH10 10 600×400×(400-600) 600×350 6-8 40-60 2.2/3 900×700×2100 600
VCH15 15 800×600×(400-600) 800×450 6-8 60-80 4.4/5.5 1100×900×2200 900
