Scrap Metal Forward-out Baler

TCM-MQ series of hydraulic baler are applicable in recycling companies, to press metal scraps (steel, copper, aluminum,stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of t

  • Series:MQ
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

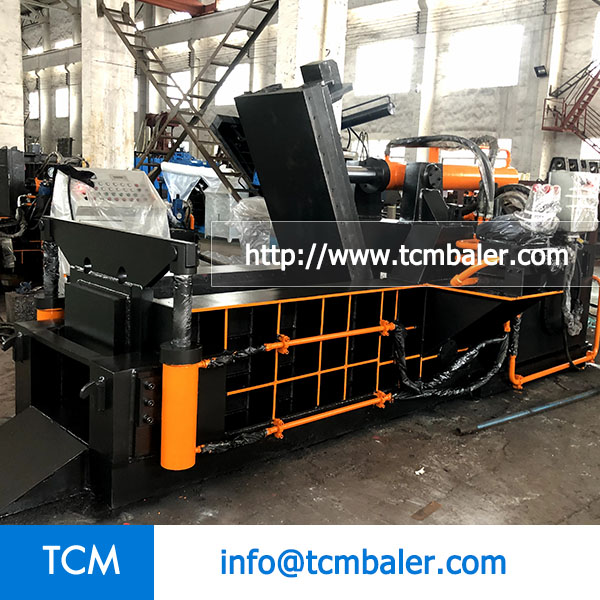

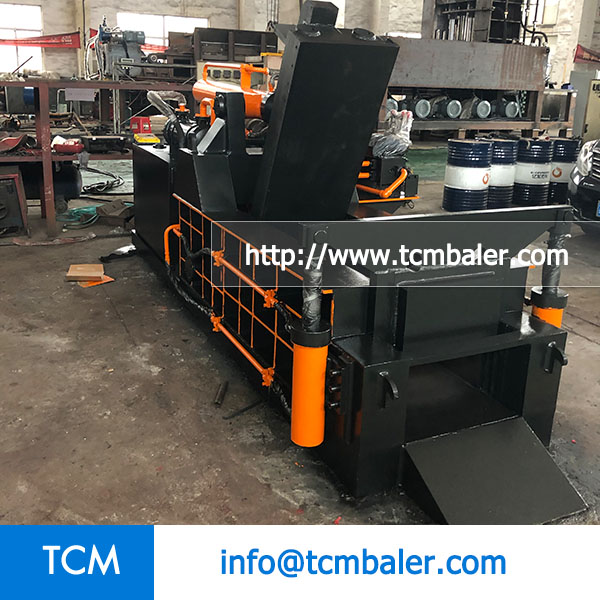

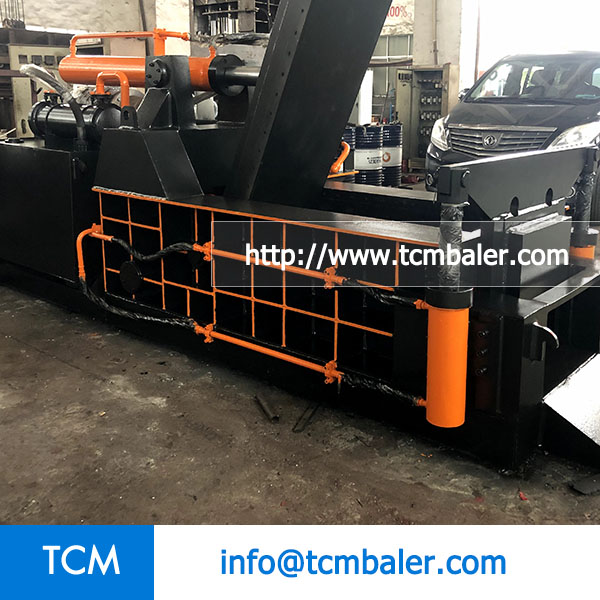

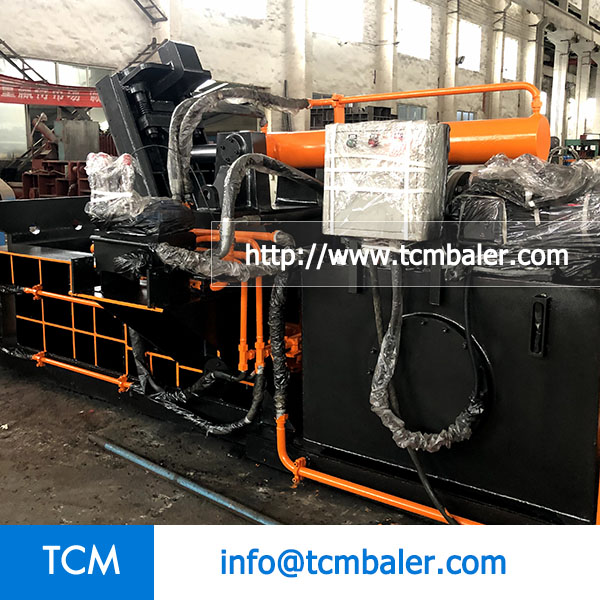

TCM-MQ series hydraulic baling press machine has more advantages than you think. When it works, bales comes out by forward-out. It can bale many kinds of materiel just like steel, copper, aluminum, stainless steel, discarded automobiles, bale these materiel into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.

Optional operation for your choice, This series baler have two operation control, one is manual valve operation, and another is PLC control, and it's optional on customer's requirements, Chamber size, bale size, bale shape can be customized.

The machine cutting function to improve the efficiency. The feeding chamber has cutting function to prevent additive materials caused by carelessness and safety accident, Adopt double pressure protection device. No footing bolts needed in installation, diesel engine can be equipped for power.

Adopt foreign famous seal, valve, electric components   adopt the German hydraulic technology to save energy and protect environment, and the brand valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.


Model Hydraulic Power(Ton) Motor(Kw/hp) Voltage(Customized) Bale Size(L×W×H)(mm) Chamber Size(L×W×H)(mm) Bale Weight(kg) Control System

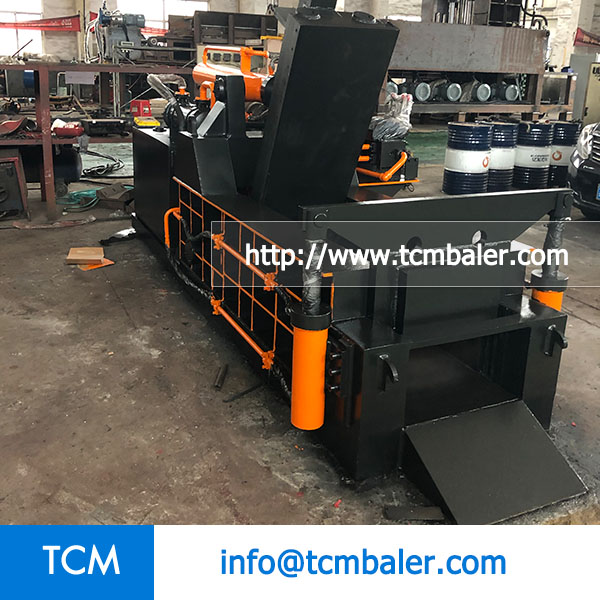

MQ135 135 22/30 200-680V/3phase 600×240 1400×600×600 50-75 Manual or PLC

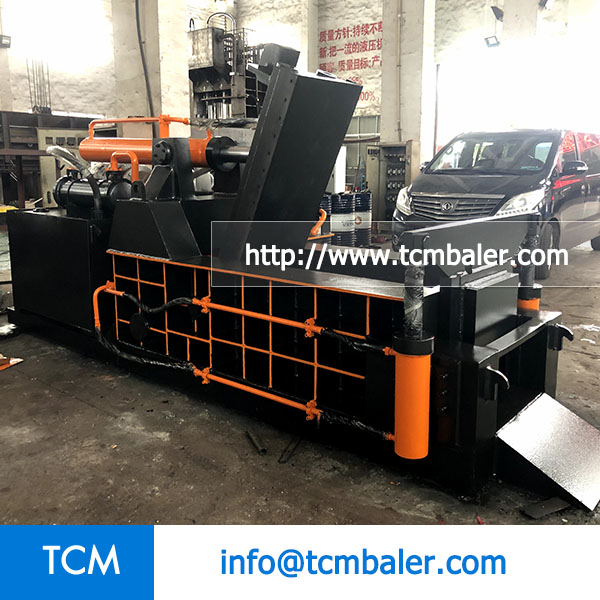

MQ160 160 30/40 200-680V/3phase 700×300 1600×700×700 80-130 Manual or PLC
