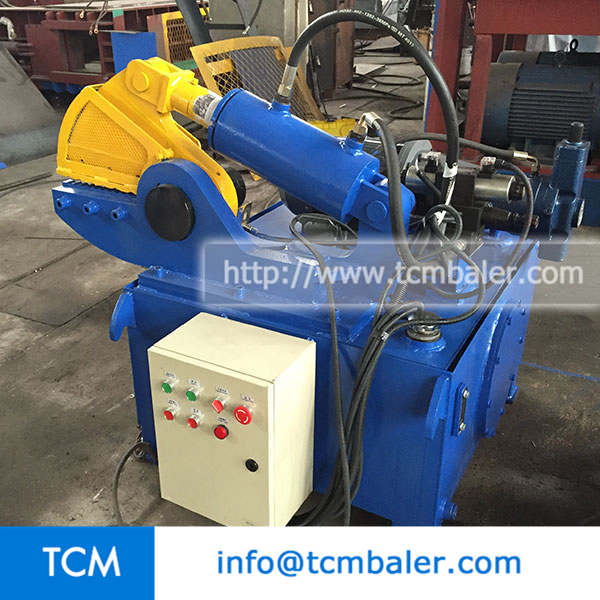

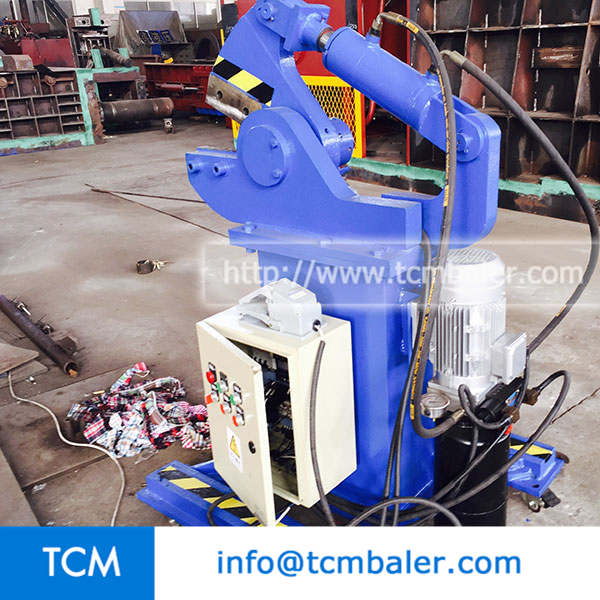

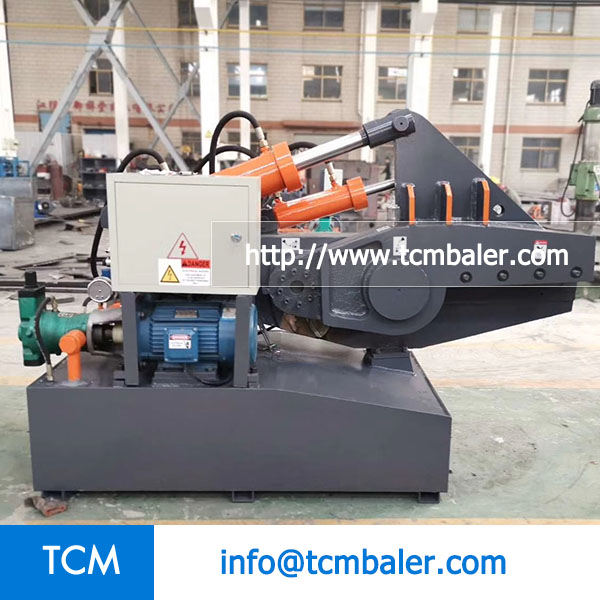

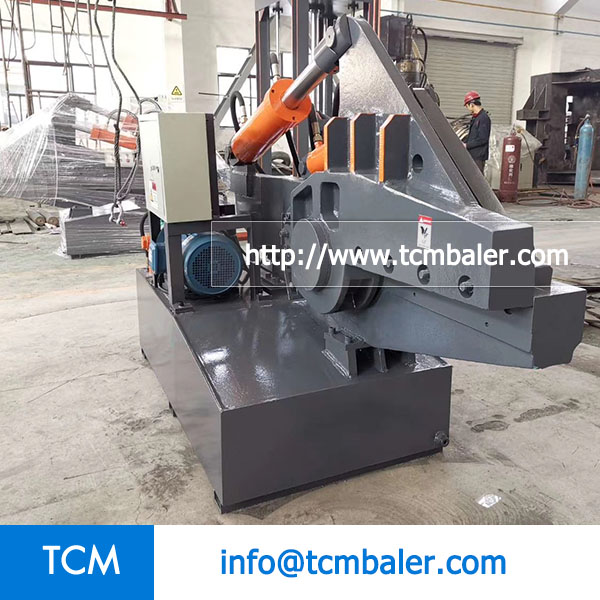

Mini-intergrated Scrap Metal Shear

TCM-HC series of hydraulic alligator shears are ideal machines for cropping Aluminium profile, copper, steal tubing, shock absorbers, lead, cable,non-ferrous scrap and most other hard metals that need shearing into smaller lengths.

  • Series:HC
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

TCM-HC series of hydraulic metal shears are applied in recycling companies, automobile dismantling plants, smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges. HC series can work automatic continuously or manual single operation, which are the best equipment for light furnace charge and steel cutting.

Features of TCM-HC series mini-intergrated scrap metal shear

(1)Adopting hydraulic drive, HC series feature simple operation & easy maintenance, it's safe and reliable.

(2)Shear force 9 grades from 63 to 500 tons; Blade length 400mm, 600mm, 700mm, 800mm, 1000mm,1200mm, 1600mm, 1800mm.Various models for your choice and the new machine is a customized product

(3)No footing bolts needed in installation: Diesel engine can be equipped for power

(4)Smaller size, lighter weight and smaller occupation area

(5)Vertical design & rapid design, has faster shear rate

(6)Movable type, satisfy the need of changing places

Application

Parameter

Model Max Shear Force(KN) Motor power(kw) Blade Length(mm) Blade Table Height(mm) Blade Opening(mm) Working Pressure(Mpa) Control Machine Size(mm)

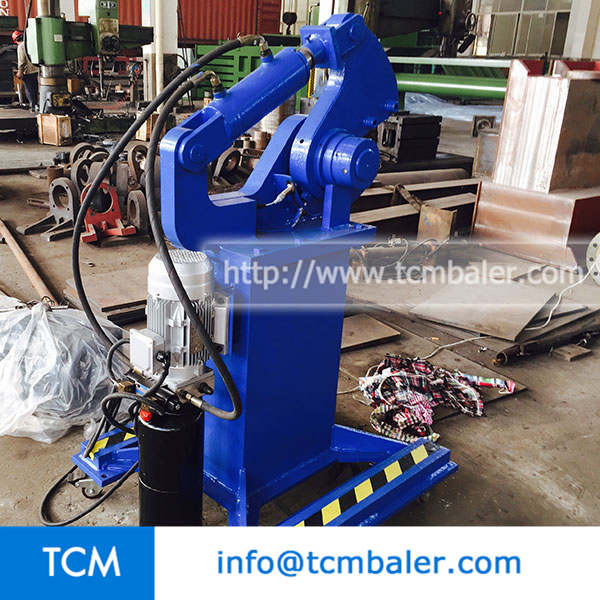

HC60 60 3 300 1250 160 15 Electric Control 1200×980×1400

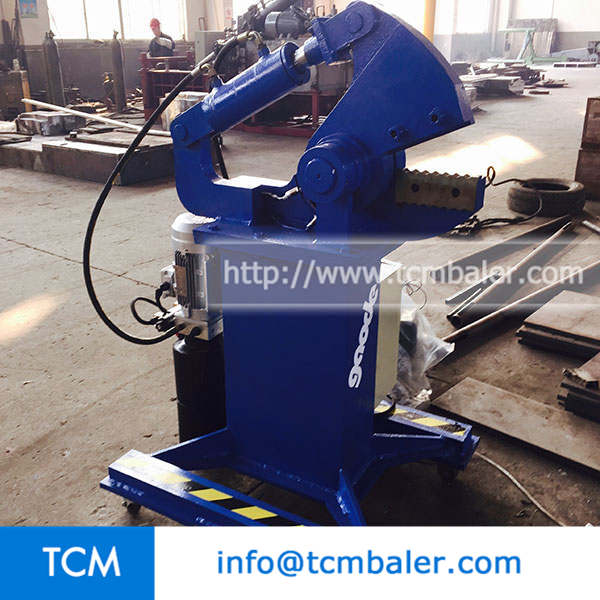

HC250 250 5.5 300 800 160 15 Electric Control 1200×980×1200
HC630 630 7.5 400 760 260 21.5 Electric Control 1500×800×1200

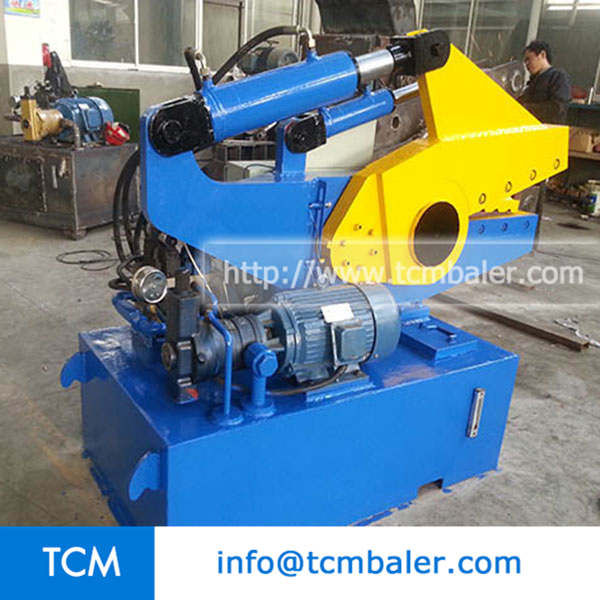

HCZ630 630 7.5 400 760 260 21.5 Electric Control 1500×800×1200
