Details

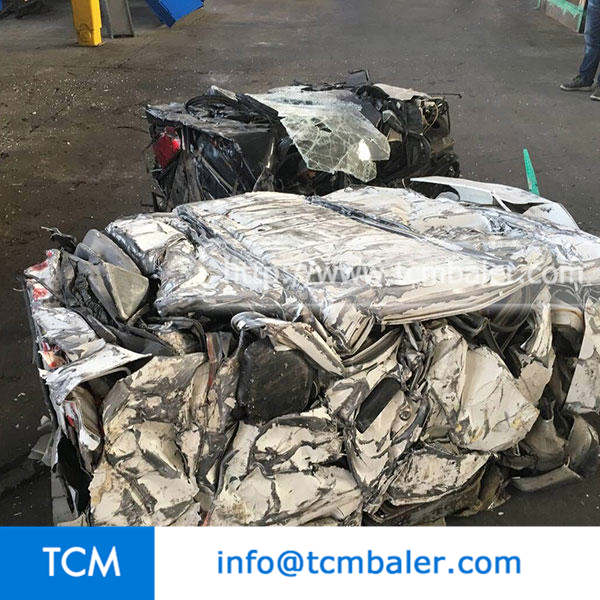

TCM-CB mobile baler machine is mainly a variety of low carbon thin type production and scrap steel, scrap cars, steel production of light metal structural components packaged into the steel scrap. The utility model is an ideal equipment used for steel factory, nonferrous metal smelting industry, precision casting industry and raw material manufacturers.
Features of TCM-CB series mobile baler

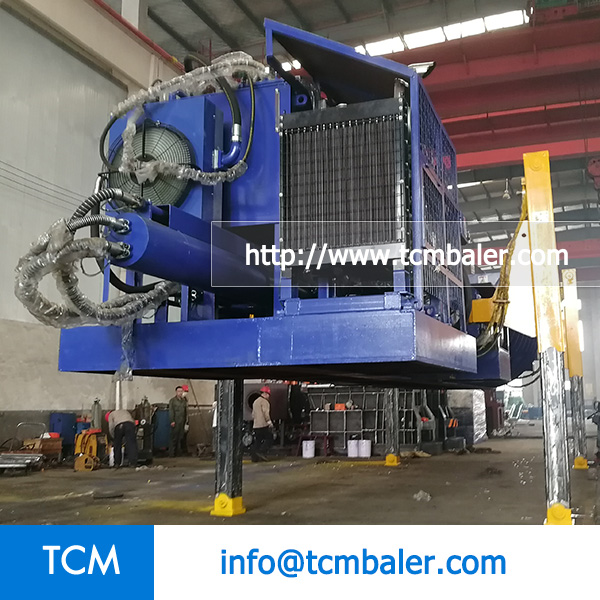

(1) Use the folding door cover compression have the 4 support cylinders. Fast and smooth lifting, Convenient for the Trailer shipment
(2) Use the imported parts and materials, Good abrasion resistance,High strength, Quality guarantee and energy saving
(3) Telescopic main oil cylinder, Reduce equipment length, easy to move

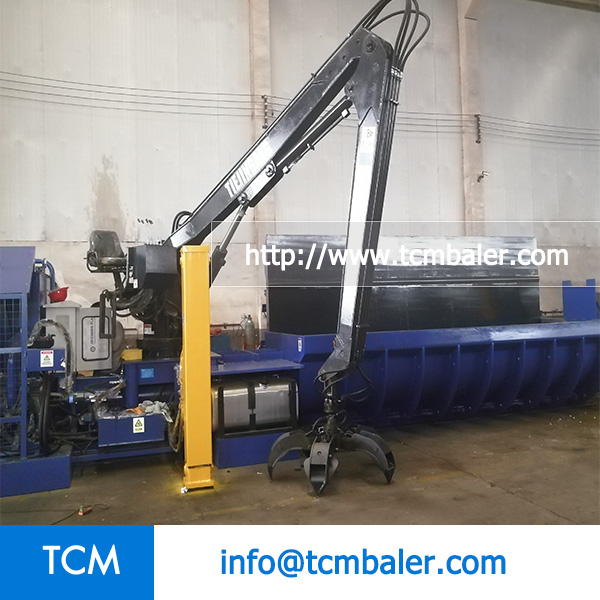

(4) 360 degree rotating grab, Feeding, packing, packing block loading is only one person control
(5) Have a big case,Can put a lot of material, good for the packing effect
(6) Movable type, change the place easily, reduce the cost of bulk waste transportation
Application
Parameter
| Model | TCM-CB4200 | TCM-CB5000 | TCM-CB6300 |
|---|---|---|---|
| Diesel Engine Power (hp) | 135 | 215 | 300 |
| Chamber Size (L*W*H) (mm) | 4200×1600×1100 | 5000×1800×1200 | 5000×2430×1600 |
| Bale Size (L*W*H) (mm) | 1000×600×600 | 1000×800×700 | 1200×850×650 |
| Bale Weight (kg) | 600-750 | 800-1100 | 900-1350 |
| Working System Pressure (Mpa) | 21.5MPa | 21.5MPa | 21.5MPa |
| Baler Density (kg/m³) | ≥2000 | ≥2000 | ≥2000 |
| Bale Discharge | Grab Machinery | Grab Machinery | Grab Machinery |
| Cooling System | PCE-75P-C | PCE-75P-C | PCE-75P-C |
| Control | PLC Automatic Control System | PLC Automatic Control System | PLC Automatic Control System |
