PP Strap Full-Automatic Horizontal Baler

TCM-HPAP series automatic horizontal baler, applicable for recyclers handling large daily amount of soft waste such as cardboard (popular as cardboard baler or OCC baler ), paper, plastic film, natural fiber, textile waste, soft plastic package and others

  • Series:HPAP
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

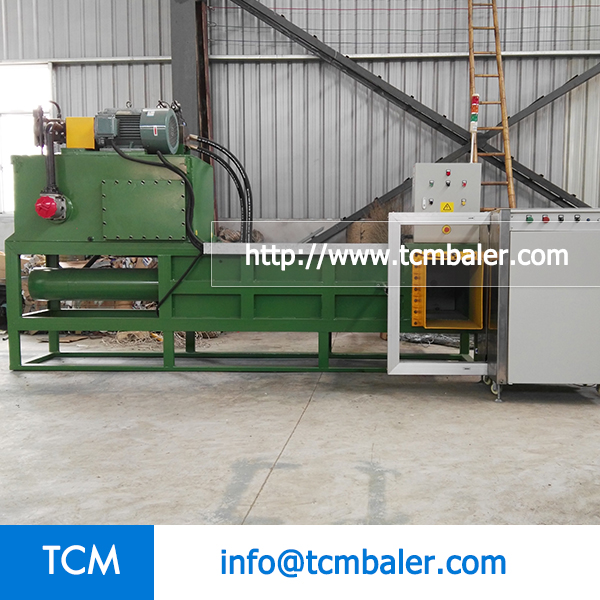

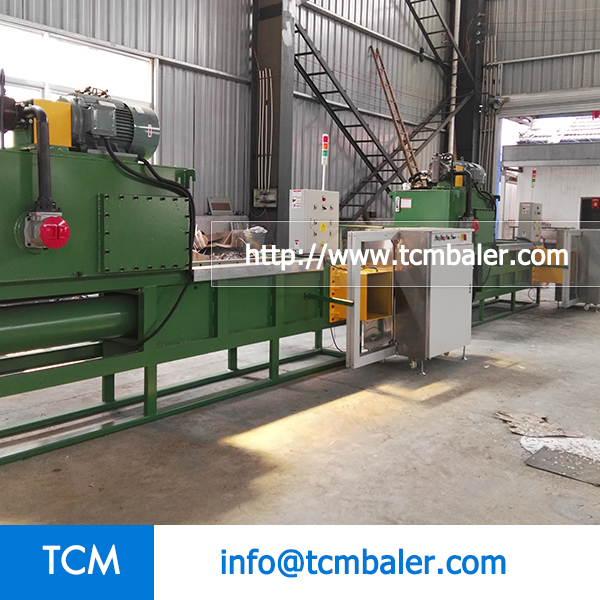

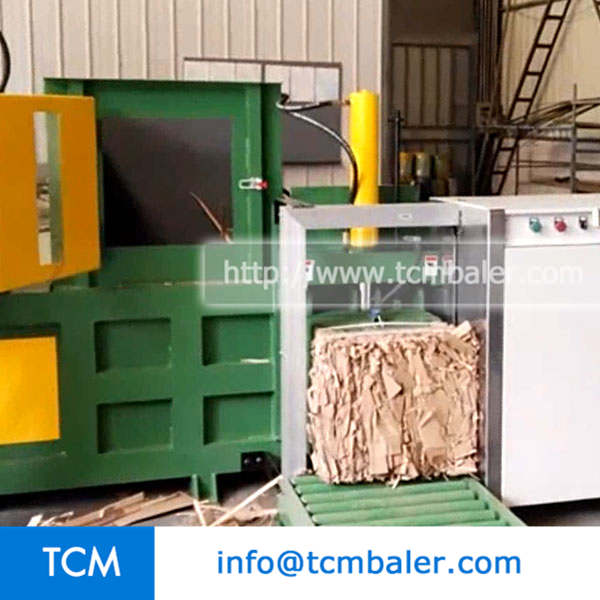

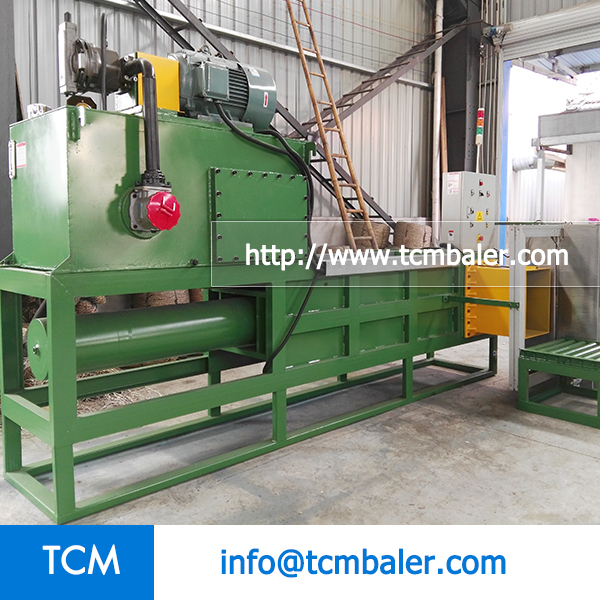

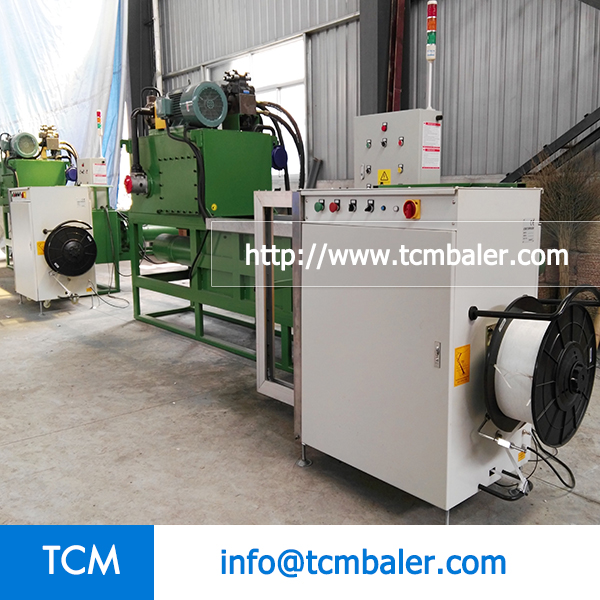

TCM-HPAP series automatic horizontal baler use the latest design, simple frame and solid structure. When we use them, we can only use pp strap to tie up the bales of material. This the difference between HPAP series and other series automatic horizontal baler machine. Open type structure makes packaging conveniently, and improves work efficiency. Three sides convergent way, counter loop type, tightening and loosening through the oil cylinder automatically. And the vessel classification of welding process to ensure that equipment is more stable and reliable.

Full-automatic operation, easy to learn ,operate and maintain. Configures with PLC program and touch screen control, operated simply and equipped with automatic feeding detection, can compress bale automatically, realize unmanned operation, designs as special automatic strapping device.

Adjustable Bale size and weight on customer‘s requirement. The bale length and weight can be set arbitrarily, and accurately record data of balers. Also the bale size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.

Adopt foreign famous seal, valve, electric components Adopt the German hydraulic technology to save energy and protect environment, and the YUKEN valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.

Parameter

Model Hydraulic power Bale size (W*H*L) mm Strapping Number Bale Weight (kg) Motor(Kw/Hp) Main Machine Size (L*W*H) mm
HPAP20 20 500*500*500 2-4 30-70 7.5Kw/10Hp 3400*3010*2400
HPAP30 30 700*700*700 3-5 70-130 11Kw/15Hp 4250*3120*2600
HPAP40 20 800*800*800 3-5 100-150 15Kw/20Hp 4750*3380*2900
