Wiper Horizontal Bagging Baler

TCM-HBC series pressing bag baler is applicable to compressing small and soft material, such as clothing, fabric, sawdust, fertilizer, feed stuff, etc,then pack the material into handy and small bags.

  • Series:HBC
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

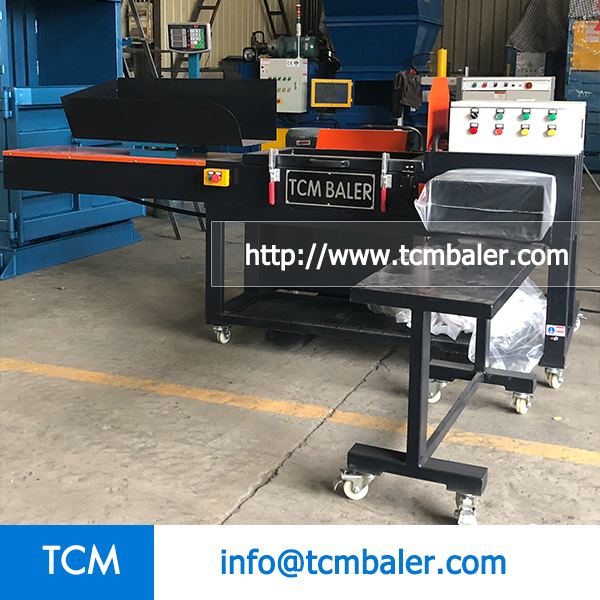

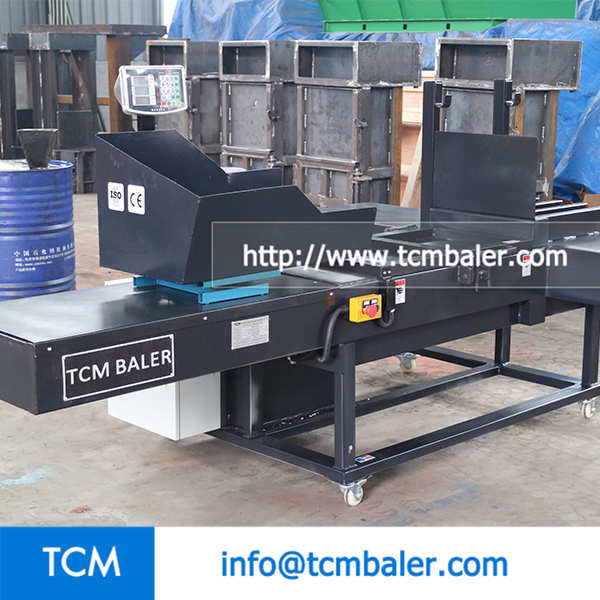

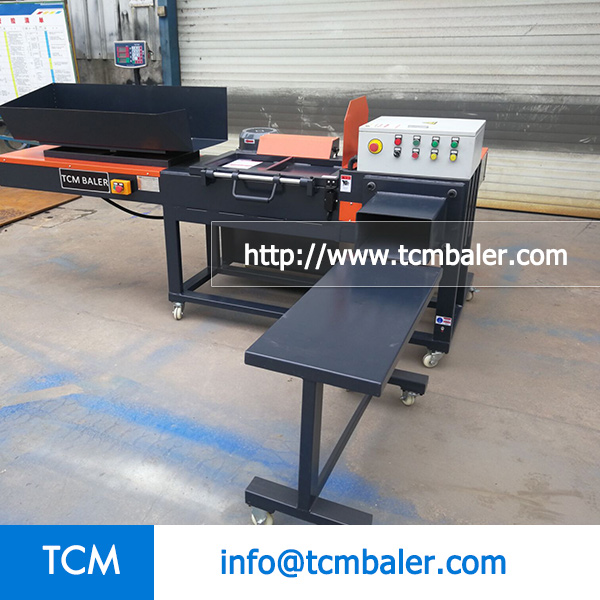

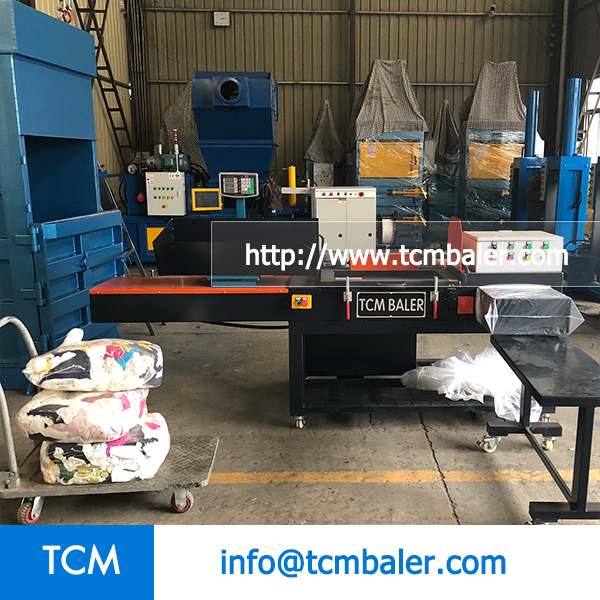

TCM-HBC series wiper bagging baling press machine has the feature of high efficiency, economical and continuous baled. It is suitable to compress and package small size of splintery material, Output speed can reach 40-60 bales per hour, high efficiency. Self-owning weight and quantity measurement, control weight of each bale effectively, ensuring consistent bales with accurate weight.

It is also simple and has a proper structure. Also this series wiper baler can be customized. It is high strength output door, hydraulic automatic door opening and closing, convenient operation and safety, Safety interlock, three-phase voltage, simple operation and Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.

Electric button control, convenient for operation Electric button control, one time to complete compression and disposable bag by one button, Increased material controller can make the machine automatically start compress automatically. Feed material by manually or automatically, high degree of automation, saving manpower.

Adopt foreign famous seal, valve, electric components. Adopt the German hydraulic technology to save energy and protect environment, and the YUKEN valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.



Model Bale size(mm) Bale weight(kg) Main Motor(Kw/Hp) Appearance size(mm) Weight(kg)
HBC10 210*145*100 1Kg 5.5Kw/7.5Hp 2160*1240*1150 500
HBC20 280*180*140 2kg 5.5Kw/7.5Hp 2600*1750*1480 720
HBC50 400*300*100 5kg 5.5Kw/7.5Hp 2600*1750*1480 765
HBC100 400*400*180 10kg 5.5Kw/7.5Hp 2660*1760*1550 815
HBC150 550*400*250 15kg 7.5Kw/10Hp 2750*1810*1550 870
HBC200 550*450*250 20kg 7.5Kw/10Hp 2980*2015*1550 950
HBC250 600*450*250 25kg 11KW/15Hp 3210*2330*1550 1050
