Double Opening Door Vertical Baler

TCM-DD Series baler machine is mainly used for baling cartons, cardboard, cotton yarn, fiber, plastic, pet bottles, etc. Redesigned as vertical structure, hydraulic transmission, electrical control and manual binding.

  • Series:DD
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

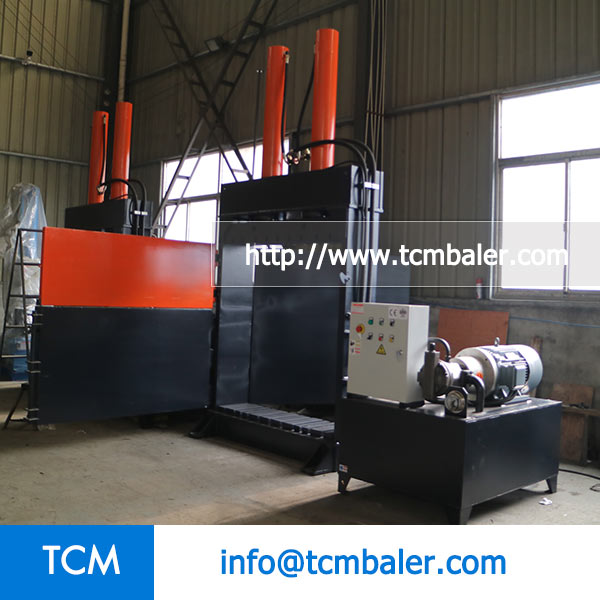

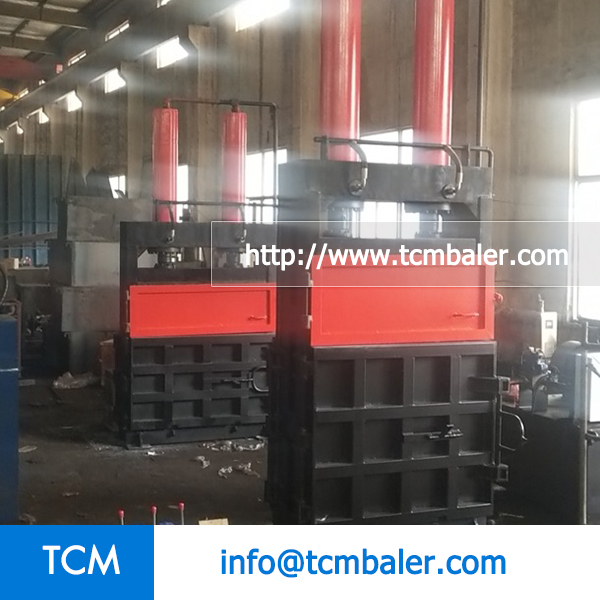

Adopt front door and rear door opening type. Front and rear doors opening, suitable for small size material,The bales look neat and beautiful, suitable for small size materials no material spattering when pressing.

Optional control model for your choice. Hydraulic driving, stable self-lubrication and have a long life; manual control and electrical button control model are available for your choice.

Safety and efficient bale out model. Turnover by lifting hook, safe and quick, Relieving lock device to ensure operator's safety.

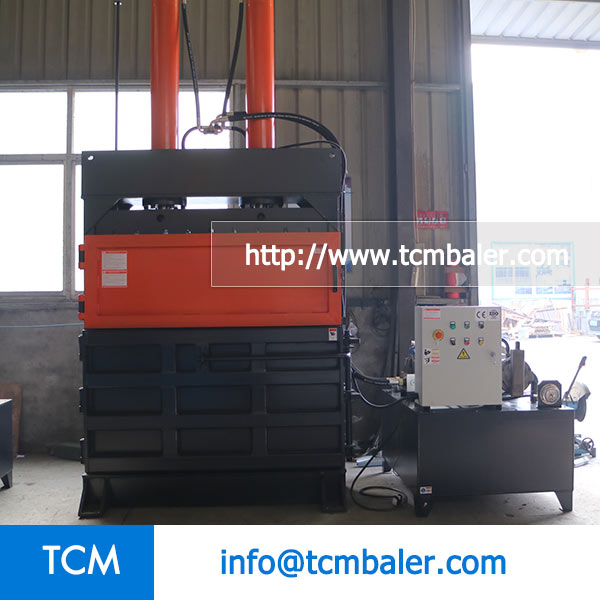

Electrical button control, convenient for operation Electrical button control, convenient for operation and maintaining, highly accurate joint-shaft bracket ensures the precise concentricity of motor and oil pump, extend oil pump service life.



Model Hydraulic power(ton) Bale size(L*W*H)(mm) Bale Weight(kg) Output(bales/hour) Power(kw) Machine size(L*W*H)(mm)
DD100 100 1220×450×(300-800) 100-200 4-6 22 2100×1300×3250
DD150 150 1430×550×(200-600) 100-200 6-10 37 2020×1500×3450
DD200 200 1500×410×(200-600) 100-250 6-10 37 1100×850×2850
