Details
Applicable for long plastic pipes. Long plastic pipe or profile does not need to cut into sections, can be directly broken.
Fan pumping system convenient for collecting. Homogenous granules, and equipped with fan pumping the granules into the bag.
Special double hopper design. Double hopper design, feeding port is equipped with vertical type curtain, low noises.
Easy maintenance and operation. Easy to replace blade, screen, equipped with a screw hand wheel operation, Heavy rotor and can meet the high hardness, thick wall, ductile pipes, profiles.
Parameter
| Model | Roller Diameter(mm) | Fixed knife number | Rotate Knife number | Mesh Diameter(mm) | Capacity(kg/h) | Motor(Kw) | Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|
| SWP400 | 400 | 2 | 5 | 10 | 250-350 | 15 | 2000*900*1800 |

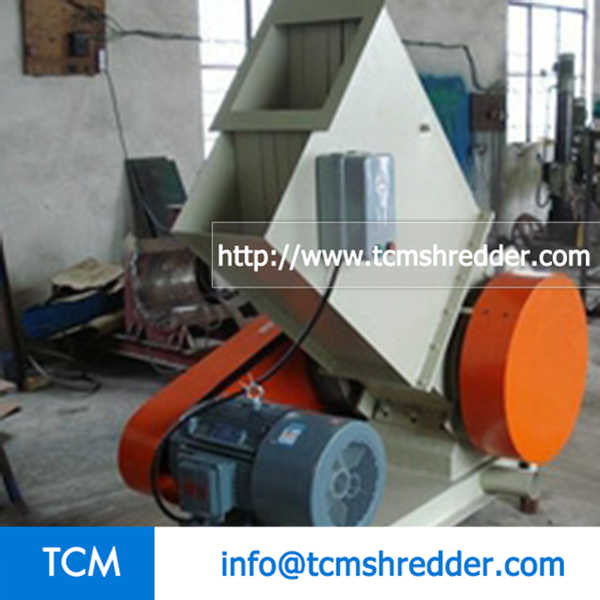

| SWP500 | 500 | 2 | 5 | 12 | 450-500 | 22 | 2200*1050*2100 |
| SWP600 | 630 | 4 | 10 | 14 | 650-750 | 37 | 2400*1300*2400 |

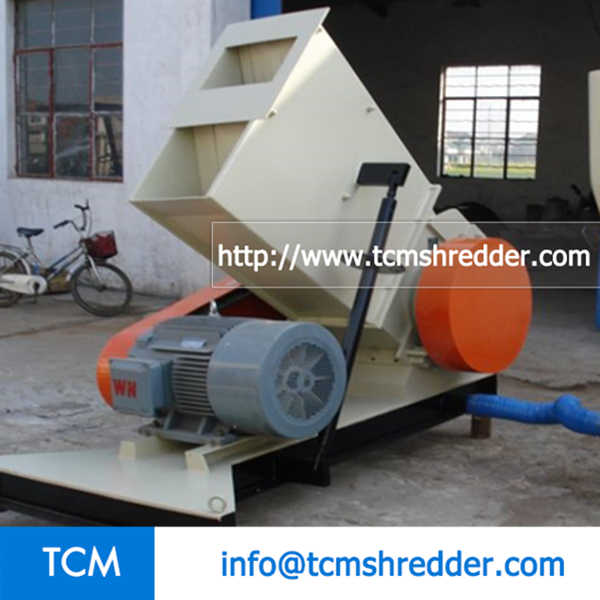

| SWP700 | 730 | 4 | 10 | 14 | 700-800 | 55 | 2600*1500*2700 |

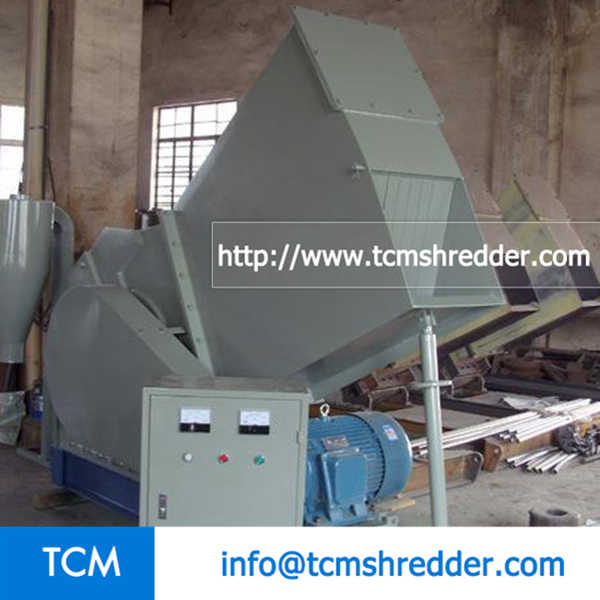

| SWP800 | 830 | 4 | 14 | 16 | 800-900 | 75 | 2700*1680*2840 |

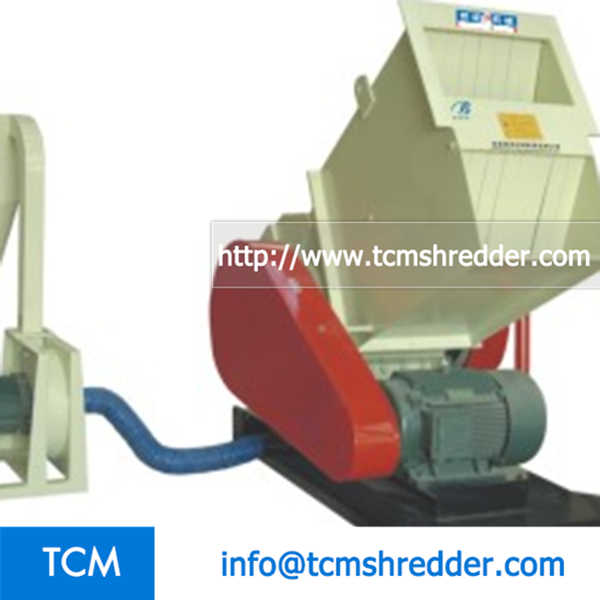

| SWP900 | 900 | 4 | 14 | 18 | 1100-1200 | 110 | 2700*1750*2950 |
