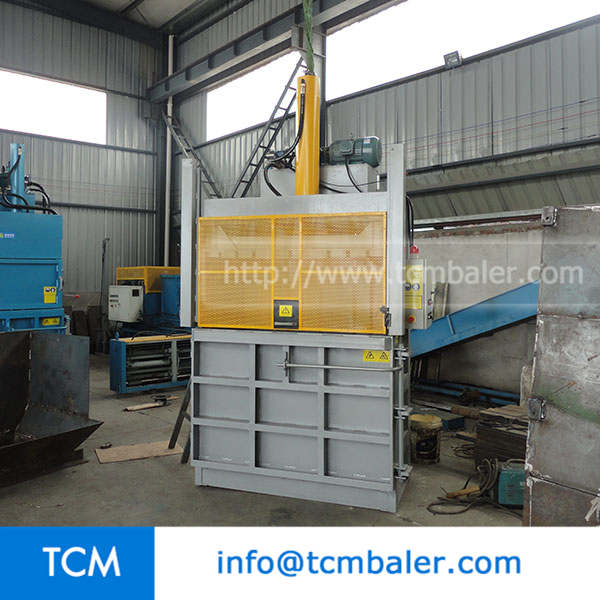

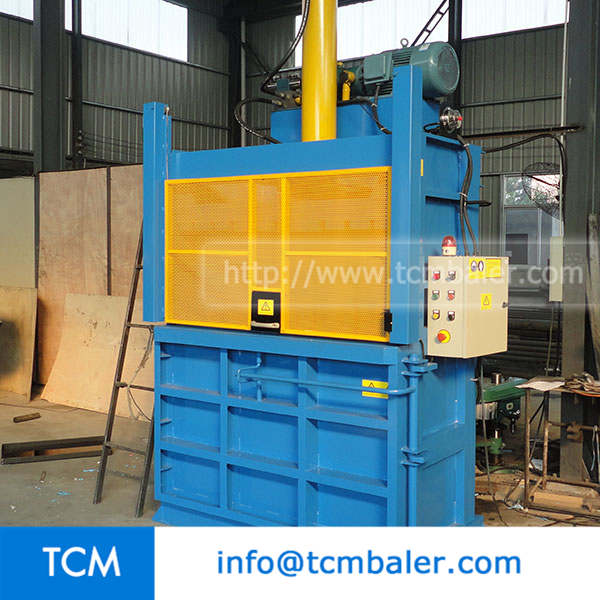

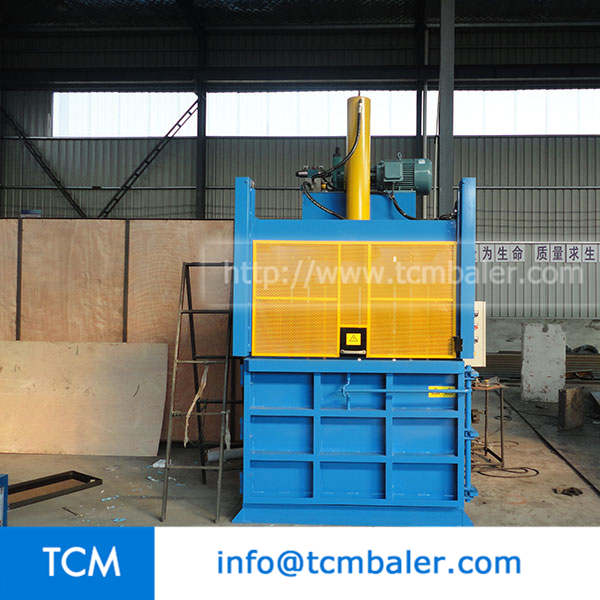

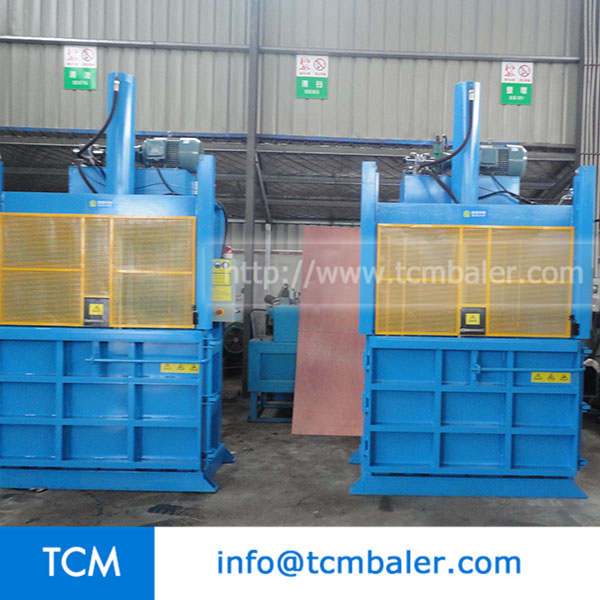

Lifting Door Vertical Baler

TCM-LD Series baler is mainly used for baling cartons,cardboard, cotton yarn,fiber, plastic, pet bottles, etc.designed as vertical structure, hydraulic transmission, electrical control and manual binding.

  • Series:LD
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter


TCM-LD series baler machine is one of our most popular down stroke balers. It is with great use in the disposal of cardboard or carton. So it is also popular named cardboard baling press machine or carton compressor. They are hydraulic mill size balers and ideal baling solutions for waste recycling facilities, cardboard paper manufacturing units, supermarkets, department stores, grocery stores, drug stores, printing facilities, and others that generate massive waste cardboard and waste paper.

Cardboard baler for sale can strap hundreds of cardboards into a bale up to 520kg with largest bale size of 1520*760*1000mm. The volume reduction is approximately 12:1 when pressing plastic film or cardboard. The dense bales are directly sent to mills for further recycling. For recycling centers, this will mean reduced waste storage area, streamline overall waste processing operations and savings on transportation and labor costs. This cardboard baling machine also fully meets safety requirements and ensures heavy bales with high platen pressure. It is very easy to operate and manual door open and automatic bale ejection. The large door opening can ensure the loading of big volume of materials.

Features of TCM-LD series baler machine

(1)U-type balance device which avoid inappropriate accidents from placing material.

(2)The feed opening uses up-down moving door, save place and convenient to feed the material.Attractive appearance, export more for this model.

(3)Safety interlocks, bales out automatically.

(4)Work with high efficiency, low energy consumption.

(5)Adopt England brand sealing parts; improve the life time of oil cylinder.

(6)Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.

(7)Adopt Taiwan brand superposition type valve group.

(8)Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.

(9) TCM-LD series is suitable for compressing waste paper box, carton, film, tatter, etc.



Model Hydraulic power(Ton) bale size(L×W×H)(mm) Feeding size(L×H)(mm) Bale Weight(kg) Output(bales/hour) Power(kw) Machine size(L×W×H)(mm)

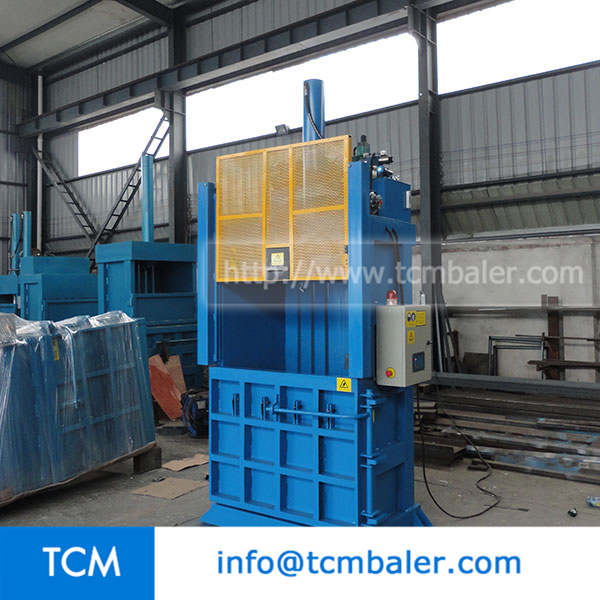

LD30 30 1100×700×(650-900) 1050×500 180-250 4-6 5.5 1580*1100*3280

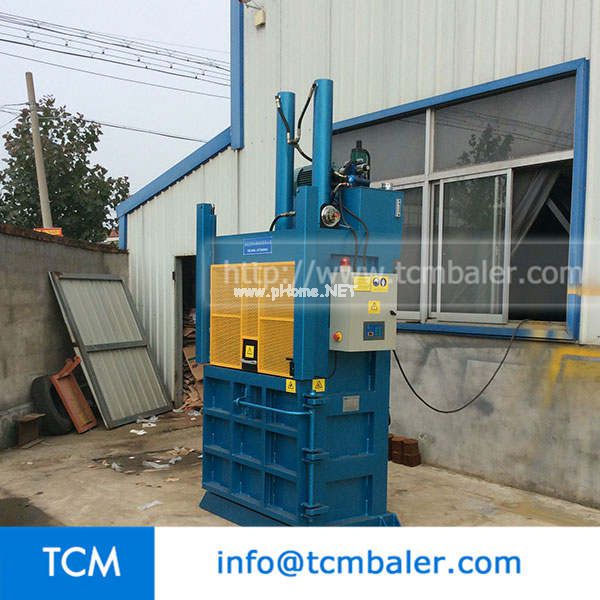

LD40 40 1100*750*(700-1000) 1050×500 200-350 3-5 5.5 1580*1150*3450

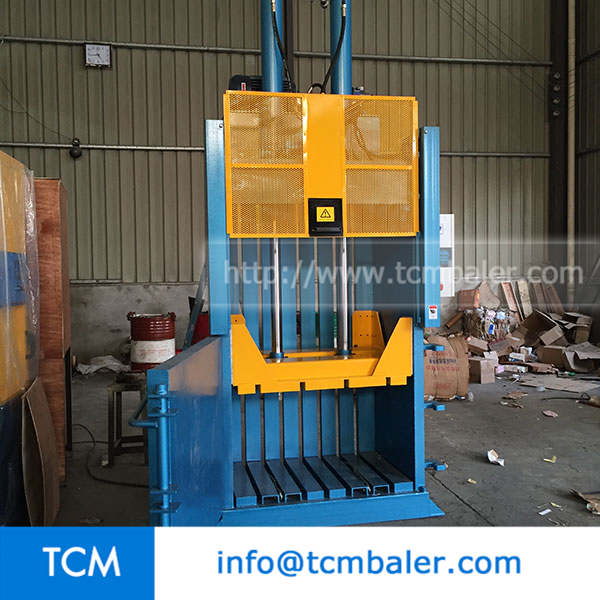

LD50 50 1500*760*(700-1000) 1450*600 350-500 3-5 7.5 2000*1180*3650

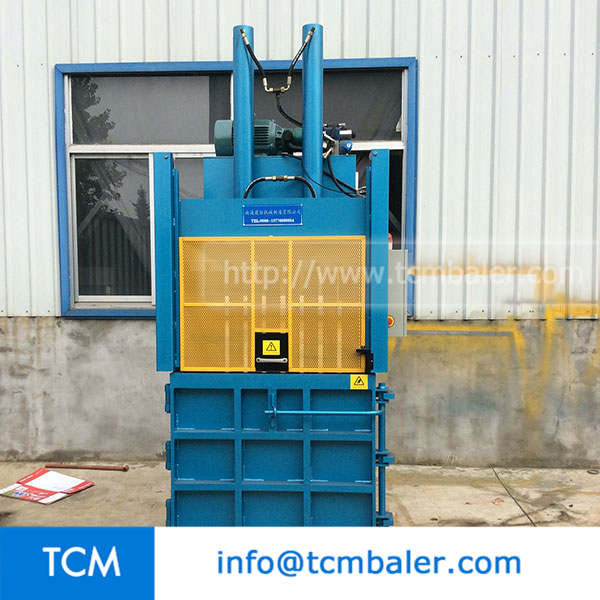

LD60 60 1500×760×(500-1000) 1500×550 300-400 4-6 15 2000×1200×3350
