Details

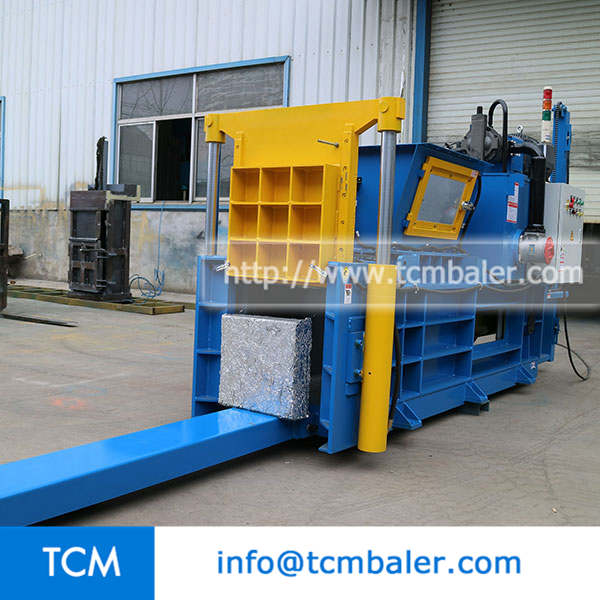

TCM-HBM series block pressing machine have high efficiency, economical and continuous. It is suitable to compress powder with low moisture content into blocks, Output speed can reach 40-60 bales per hour, high efficiency. It is closed type hydraulic baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.

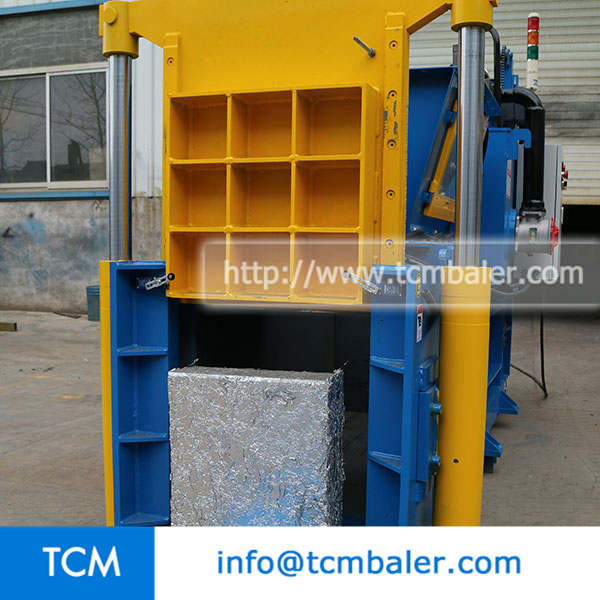

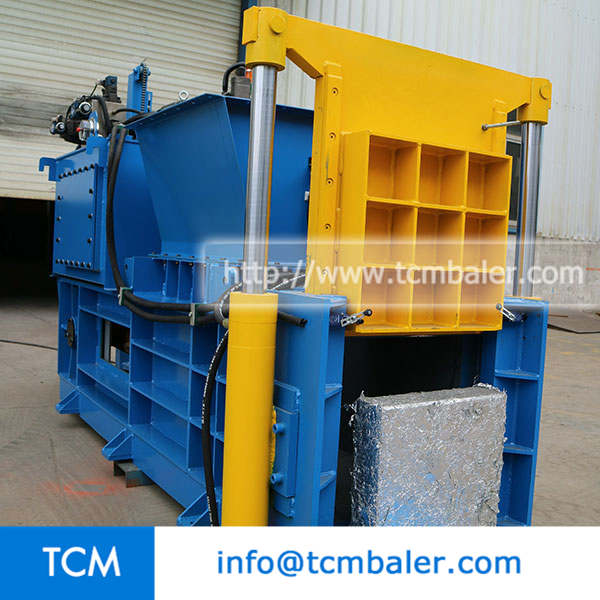

Simple and proper structure and customizable. It is high strength output door, hydraulic automatic door opening and closing, convenient operation and safety, Safety interlock, three-phase voltage, simple operation and Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.
PLC button control, convenient for operation. With PLC program and electric button control, one time to complete compression and disposable bag by one button, Increased material controller can make the machine automatically start compress automatically. Feed material by manually or automatically, high degree of automation, saving manpower.
Adopt foreign famous seal, valve, electric components. Adopt the German hydraulic technology to save energy and protect environment, and the YUKEN valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.

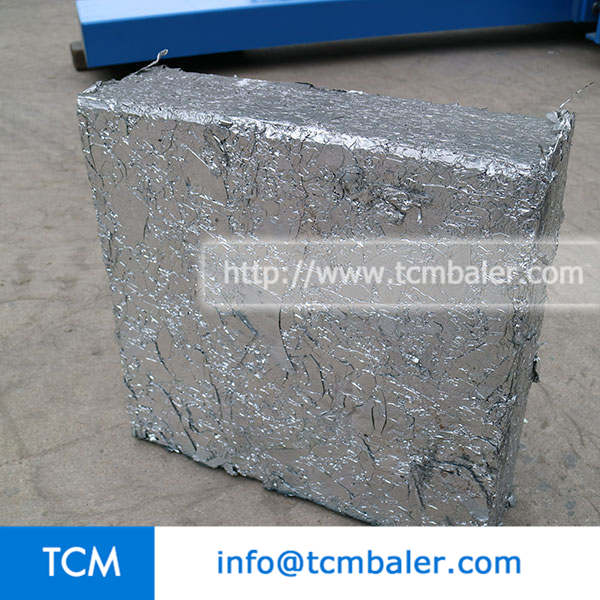

Application
Parameter
| Model | Power(Ton) | Bale Size(L*W*H)mm | Bale Weight(Kg) | Production Rate(Ton/Hr) | Motor(Kw/Hp) | Machine Size(L*W*H)mm |
|---|---|---|---|---|---|---|

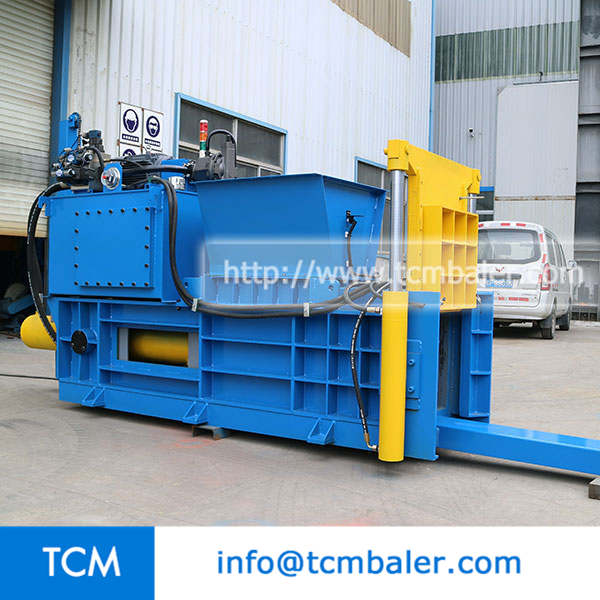

| HBM60 | 60 | 300*300*(200-300) | 5-10 | 0.2-0.5 | 15Kw/20Hp | 3900*900*1350 |

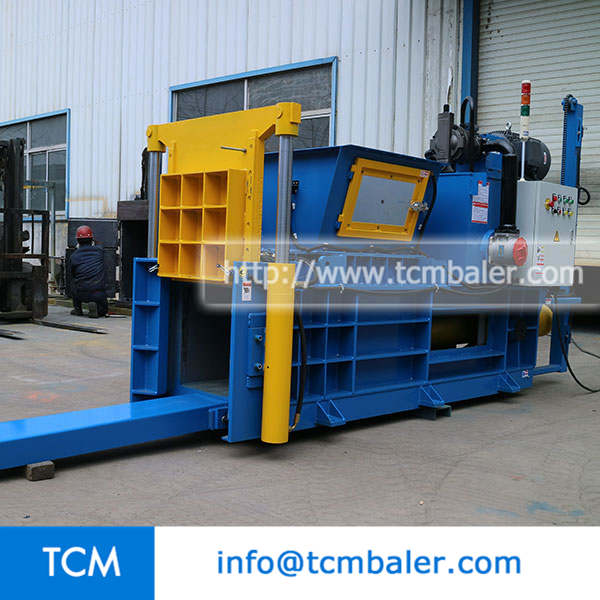

| HBM100 | 100 | 320*320*(200-250) | 5-15 | 0.4-0.8 | 18.5Kw/25Hpa | 4000*920*1350 |

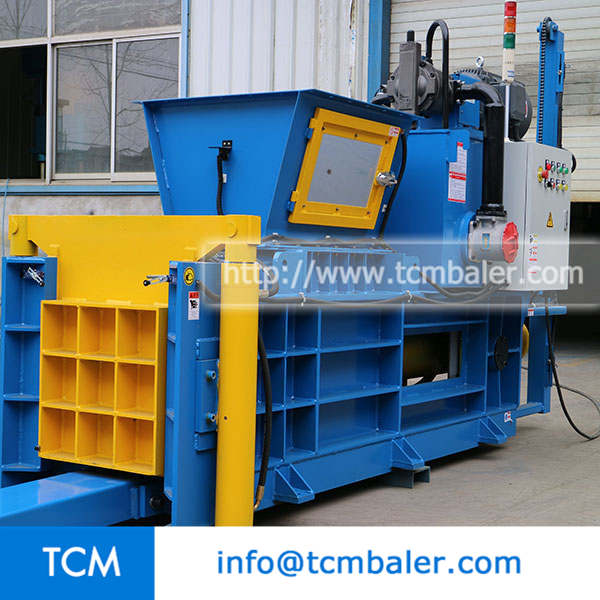

| HBM150 | 150 | 350*350*(200-300) | 10-16 | 0.65-1 | 22Kw/30Hp | 4200*950*1399 |

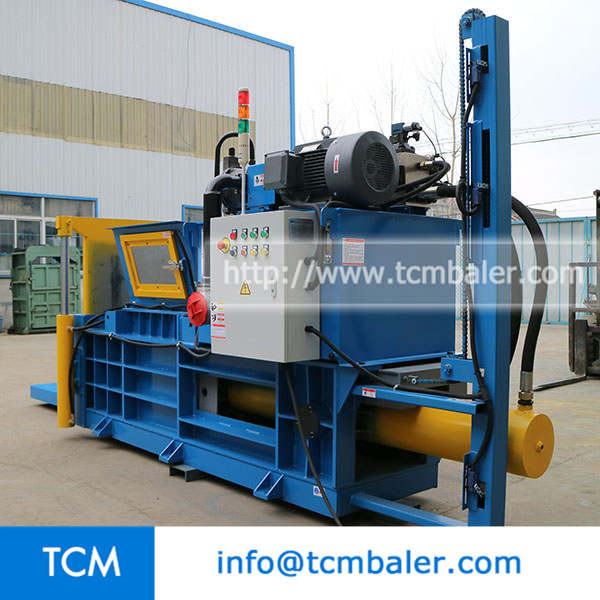

| HBM200 | 200 | 450*450*(200-300) | 20-35 | 1.5-1.8 | 30Kw/40Hp | 4260*1100*1800 |
