Details

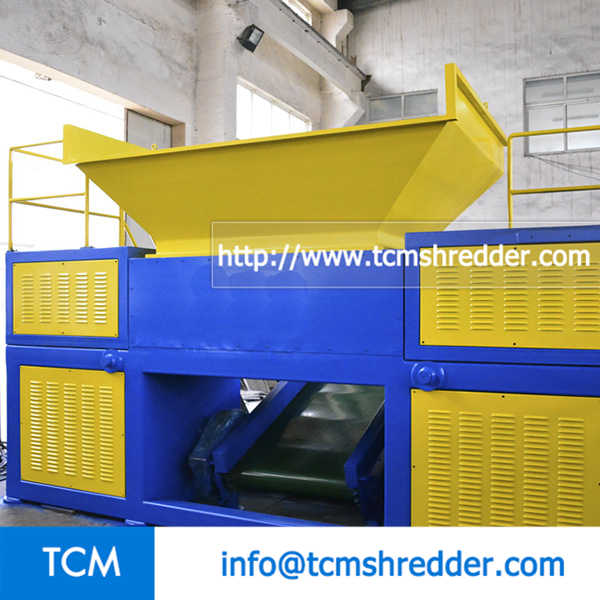

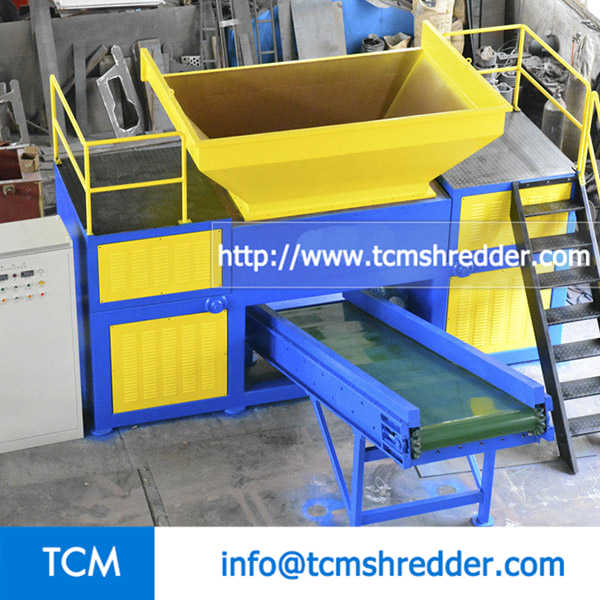

Special double shaft design without pusher. Particularly design for soft material. Largely improve the efficiency, It is more efficient because the material could be fed directly.
Gear box with shock absorber. Hardened teeth on the reducer.Absorbs vibration caused by the shredding operation. Make sure the shredding process to be steady.
Bearing seat adopt well protection. Protective bearing covers to avoid foreign contamination entering the bearing housing. Grease points to release oil at intervals to increase service life.
Different material blades with different screen size. Design for waste plastic film shredding, it is increase the shredding efficiency.Z type screen is mainly for film material avoiding to get jam, and output will be more smoothly. Different screen size meet different customer's requirements.

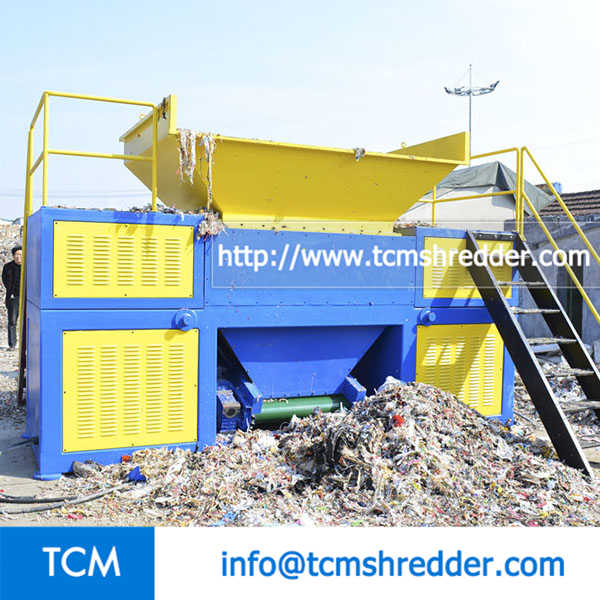

Application
Parameter
| Model | Diameter(mm) | Moving Knife number | Fixed knife number | Output(kg/h) | Motor(Kw) | Chamber Size(L*W) | Weight(Kg) | Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|---|
| DR600 | 350*2 | 60 | 3 | 750 | 30*2 | 660*950 | 4800 | 3000*1250*2300 |

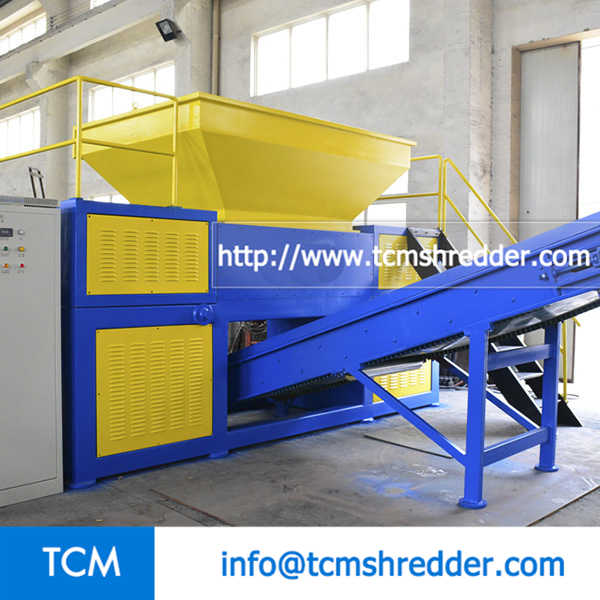

| DR800 | 350*2 | 78 | 3 | 950 | 37*2 | 860*950 | 6500 | 3200*1250*2350 |

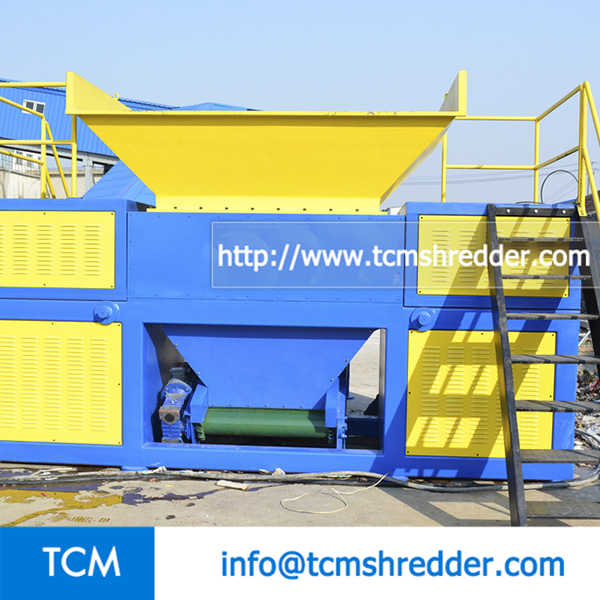

| DR1000 | 400*2 | 96 | 6 | 1250 | 45*2 | 1060*1030 | 9500 | 3500*1250*2400 |
| DR1200 | 400*2 | 114 | 6 | 1500 | 55*2 | 1260*1030 | 11500 | 3750*1250*2450 |

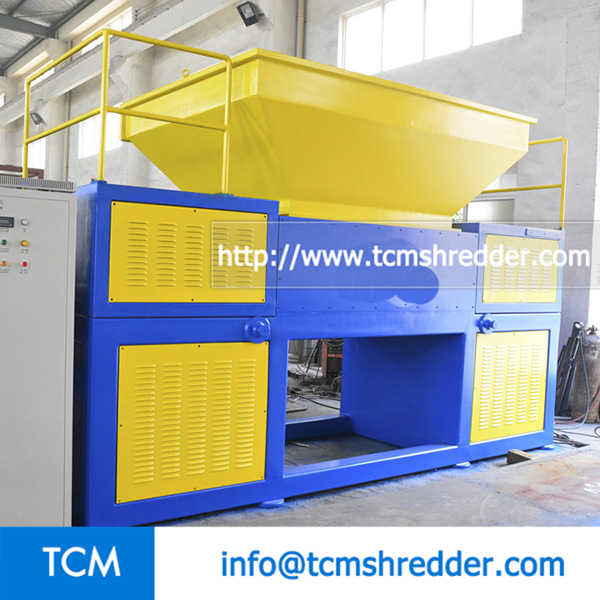

| DR1600 | 500*2 | 150 | 6 | 2000 | 75*2 | 1660*1100 | 15000 | 4200*1450*2500 |
| DR2000 | 500*2 | 200 | 6 | 3000 | 90*2 | 2060*1400 | 22000 | 4650*1650*2800 |
