Details
Container shear is a new product for the scrap metal market. It is a new design product to improve efficiency for shearing metal and other scrap for our customers. Our engineers research and design the machine day and night to improve the reliability and stability of the container shearing machine.

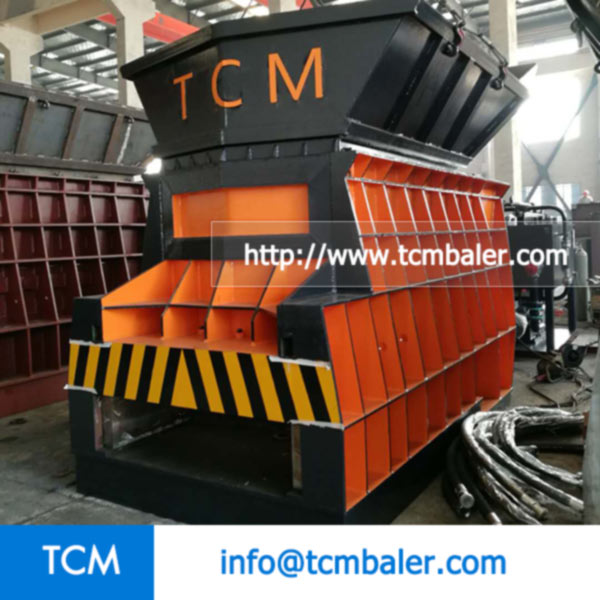

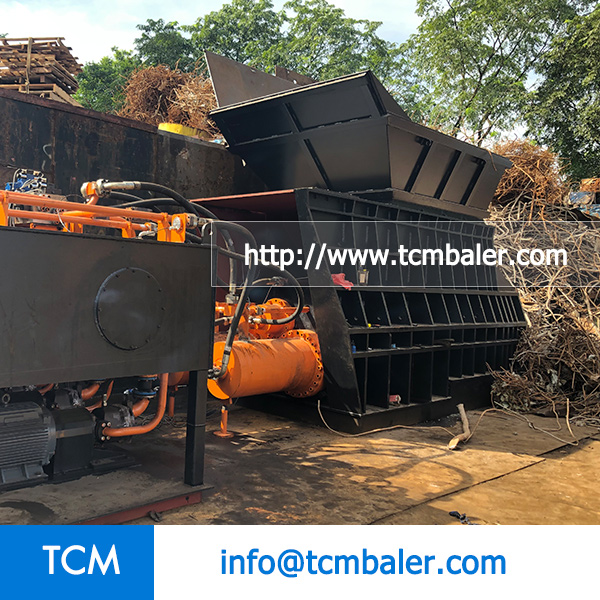

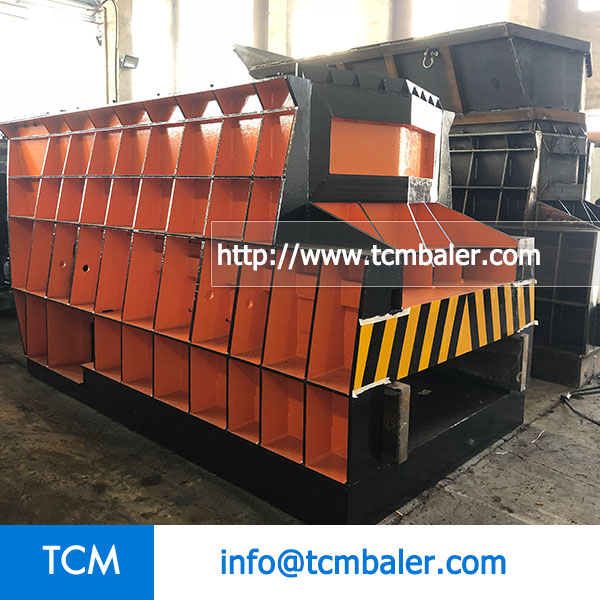

There is there models for you to choose , TCM-CS4000, TCM-CS5000 and TCM-CS6300. The bigger model has bigger chamber size and so it can provide a more greater output. It can also instead of the traditional shear. Less manpower, but more outputs. So you can make more money for your bussiness.
TCM-CS series container shear is used for economical scrap processing, easy operation and flexible transportation with a roll on/roll off system. Various models for your choice.
Features of TCM-CS series container shearing machine
(1)horizontal structure: feeding can be manual or automatic with conveyor
(2)PLC control, push-button operation, safe & reliable
(3)manual belting
Application
Parameter
| Model | HydraulicPower(ton) | Chamber Size(L×W×H)(mm) | Feeding Size(L×W×H)(mm) | Working System Pressure(MPa) | Shear Length(mm) | Shear Height(mm) | General Motor(kw) | Frequency | Weight(Ton) |
|---|---|---|---|---|---|---|---|---|---|
| CS400 | 400 | 2534×1400×1882 | 3135×2400×900 | 21.5 | 1400 | 400 | 74 | 3/min | 28 |
| CS500 | 500 | 2400×1400×2000 | 3200×2400×900 | 21.5MPa | 1400mm | 500mm | 90kw | 3.0/min | 32 |
| CS630 | 630 | 2400×1600×2000 | 3200×2400×900 | 21.5MPa | 1600mm | 400mm | 2×55kw | 3/min | 35 |
| CS800 | 800 | 2667×1600×2080 | 3472×2400×900 | 21.5MPa | 1600mm | 500mm | 3×45kw | 3/min | 55 |
